Same model may have multiple batches, images only for reference.

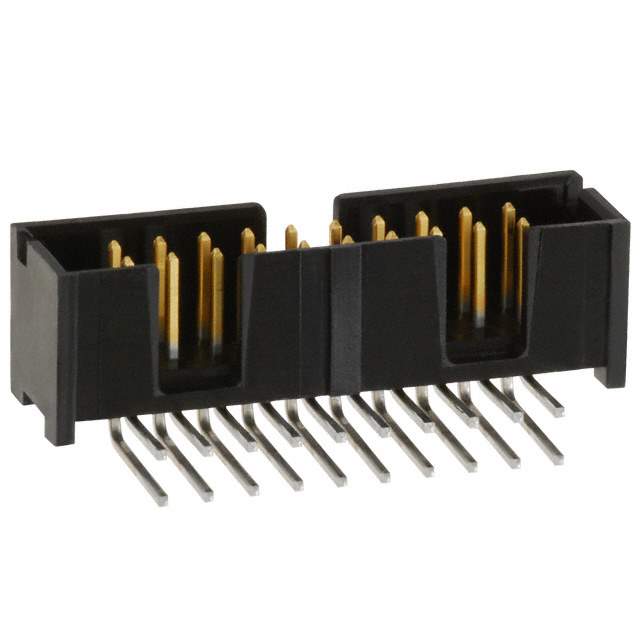

5103310-5 Real Image
Same model may have multiple batches, images only for reference.

5103310-5

Part No 5103310-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER LOPRO R/A 20POS GOLD
Datasheet
5103310-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.135" (3.43mm)
Insulation Height 0.360" (9.14mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A per Contact
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 197767-5103310-5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5103310-5 CAD Model

Description

Description

The 5103310-5 is a precision component designed for high-performance electronic applications. Its advanced features make it a staple in the engineering and development sectors.

Applications

  • Embedded systems
  • Automotive power management
  • RFID technology
  • Aerospace electronics

Features and Benefits

  • Precision-molded for peak performance.
  • High tolerance to extreme environmental conditions.
  • Easy to deploy in existing systems.
  • Excellent lifecycle longevity.

Additional Details

The 5103310-5 offers advanced operational capabilities with precision engineering, making it suitable for high-stakes environments where reliability is non-negotiable.
