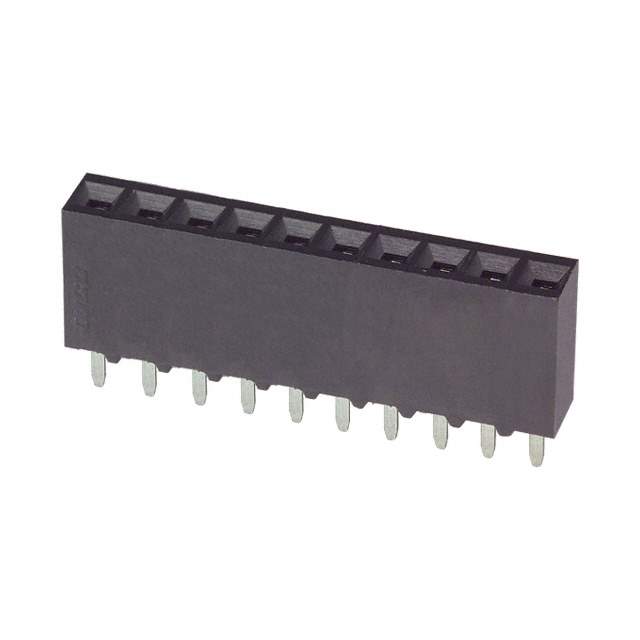

5-534237-8 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.340" (8.64mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -65°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Insulation Material Polyester, Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 150.0µin (3.81µm)
Base Product Number 534237
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 55342378,A32910,-5-534237-8-SI
Standard Package 22
Win Source Part Number 1332059-5-534237-8
Ultra Librarian 3D Model Ultra Librarian 5-534237-8 CAD Model

Description

The TE Connectivity AMP Connectors 533423-8 is a 10-position female socket receptacle connector with a 0.100" (2.54mm) pitch mating and gold contact finish.

  • Positions: 10
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Application: Board-to-Board or Cable
  • Current Rating: 2A
  • Mounting Type: Through-Hole
  • Operating Temperature: -65°C to 125°C
  • RoHS Compliant: Yes
  • Popularity: High
  • Supply and Demand: Balanced
