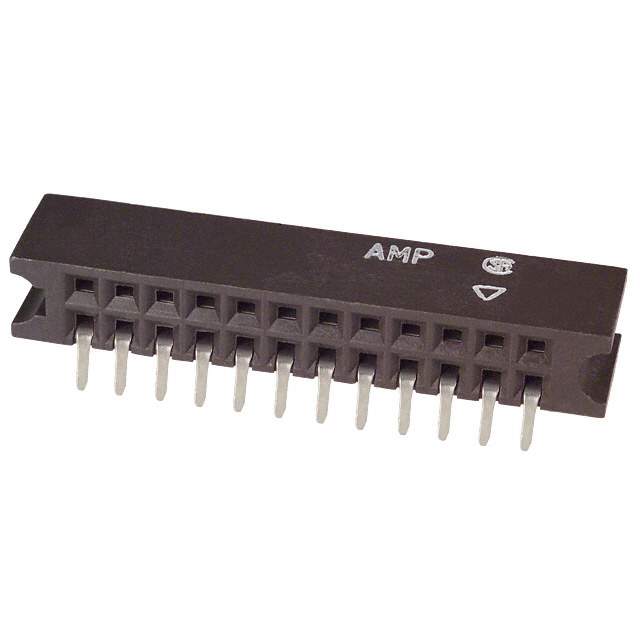

5-532955-4 Real Image
Same model may have multiple batches, images only for reference.

5-532955-4

Part No 5-532955-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 24POS 0.1 GOLD PCB R/A / 24 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Insulation Color Black
Insulation Height 0.238" (6.05mm)
Contact Length - Post 0.115" (2.92mm)
Contact Finish - Post Tin
Features Guide Pin Ears
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 532955
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 55329554,A34306
Standard Package 65
Win Source Part Number 1332073-5-532955-4
Ultra Librarian 3D Model Ultra Librarian 5-532955-4 CAD Model

Description

TE Connectivity AMP Connectors 1332073-5-532955-4 is a 24-position female socket connector with push-pull fastening type and solder termination.

  • Positions: 24
  • Contact Type: Female Socket
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Style: Board-to-Board
  • Pitch: 0.100” (2.54mm)
  • Row Spacing: 0.100” (2.54mm)
  • Contact Material: Phosphor Bronze
  • Mating Contact Finish: Gold
  • Post Contact Finish: Tin
  • Insulation Material Color: Black
  • Insulation Height: 0.238” (6.05mm)
  • RoHS Compliant: Yes
  • Standard Package: 65
