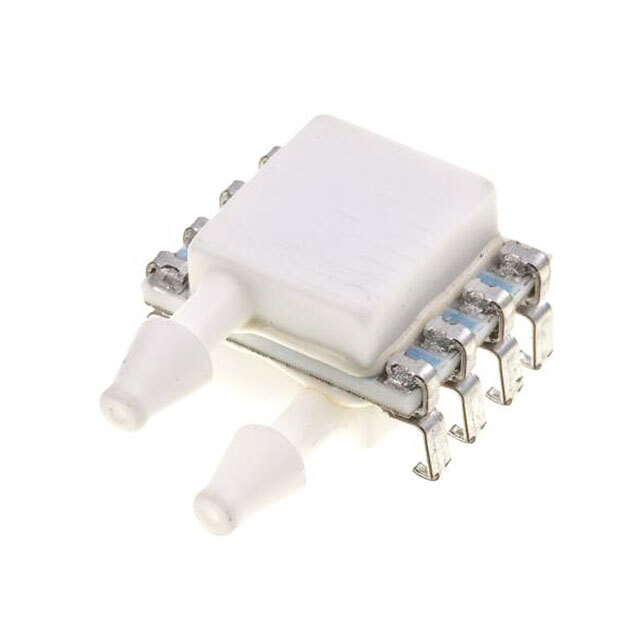

Same model may have multiple batches, images only for reference.
4525DO-SS5AI100GP TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

4525DO-SS5AI100GP

Part No 4525DO-SS5AI100GP
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 100PSIG 0.14\
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 100PSI (689.48kPa)
Output Type I2C
Output 14 b
Accuracy ±0.25%
Voltage - Supply 5V
Port Size Male - 0.14" (3.56mm) Tube
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 300PSI (2068.43kPa)
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Case / Package 8-DIP Module
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1600076-4525DO-SS5AI100GP
Ultra Librarian 3D Model Ultra Librarian 4525DO-SS5AI100GP CAD Model
