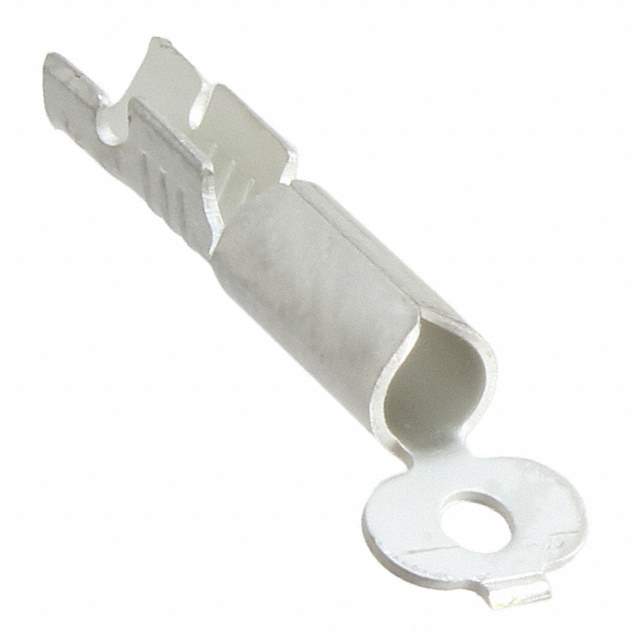

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Female, Receptacle (Socket)
Diameter - Barrel 0.093" (2.36mm)
Wire Gauge 18-24 AWG
Length - Overall 0.561" (14.25mm)
Length - Barrel 0.250" (6.35mm)
Insulation Non-Insulated
Termination Crimp
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.045" ~ 0.085" (1.14mm ~ 2.16mm)
Base Product Number 42827
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names 42827-2-ND,428272,A104019CT,-42827-2-SI,A104019TR
Standard Package 20,000
Win Source Part Number 1038632-42827-2
Ultra Librarian 3D Model Ultra Librarian 42827-2 CAD Model

Description

The TE Connectivity AMP Connectors 42827-2 is a terminal, barrel, bullet connector electronic component that has a wire gauge of 18-24 AWG.

  • Wire Gauge: 18-24 AWG
  • Terminal Type: Female, Receptacle (Socket)
  • Overall Length: 0.561" (14.25mm)
  • Insulated: Non-Insulated
  • Insulation Diameter: 0.045" ~ 0.085" (1.14mm ~ 2.16mm)
  • Contact Finish: Tin
  • Contact Material: Brass
  • Standard Package: 20,000
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Alternative Parts (Cross-Reference): 02-08-1102; 61012-3; 90119-2109; 350015-2; 61012-1; 02-08-1103
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
  • Manufacturer: TE Connectivity AMP Connectors
