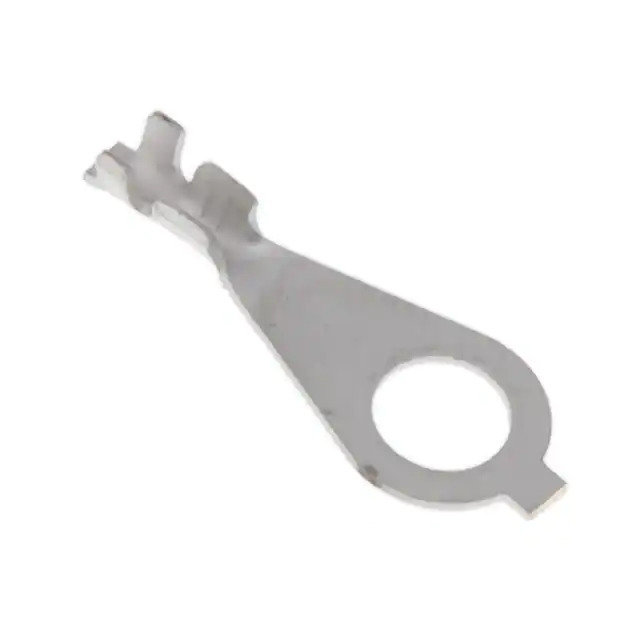

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size -
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.312" (7.92mm)
Length - Overall 0.770" (19.56mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.048" ~ 0.078" (1.22mm ~ 1.98mm)
Material - Insulation -
Base Product Number 42164
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364931-42164-2
Ultra Librarian 3D Model Ultra Librarian 42164-2 CAD Model

Description

The TE Connectivity AMP Connectors 42164 is a circular terminal type ring connector.

  • Terminal Type: circular
  • Mounting Type: free hanging (in-line)
  • Wire Gauge: 20-24 AWG
  • Contact Material: phosphor bronze
  • Contact Finish: tin
  • Insulation: non-insulated
  • Insulation Diameter: ranging from 0.048" to 0.078"
  • Overall Length: 0.770"
  • Width of Outer Edges: 0.312"
  • Thickness: 0.020"
