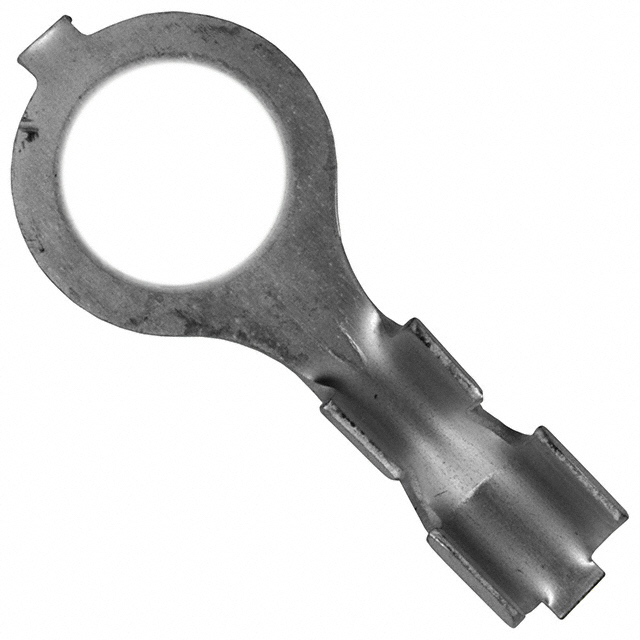

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Terminal Type D-Shaped
Stud/Tab Size 10 Stud
Thickness 0.050" (1.27mm)
Width - Outer Edges 0.550" (13.97mm)
Length - Overall 1.105" (28.07mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 8-10 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1635820-41808
Ultra Librarian 3D Model Ultra Librarian 41808 CAD Model
