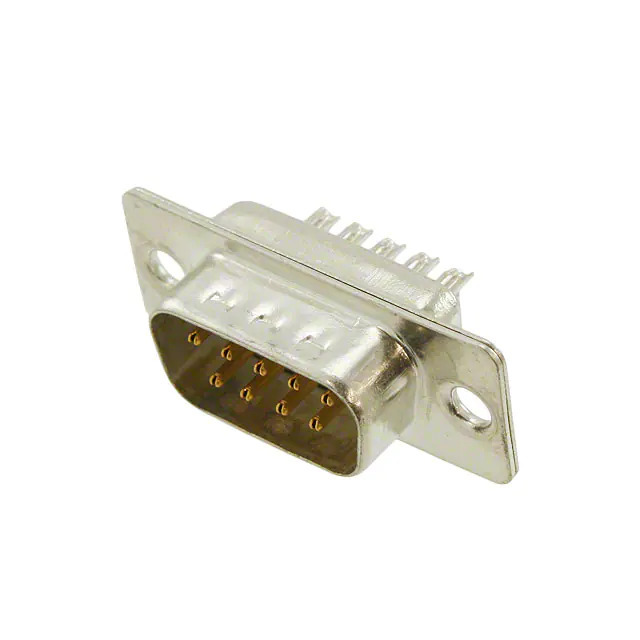

4-1393483-7 TE Connectivity
Same model may have multiple batches, images only for reference.

4-1393483-7

Part No 4-1393483-7
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS SLDR CUP / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness -
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features Grounding Indents
Voltage Rating -
Color Gray
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Polyester
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number 1393483
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365195-4-1393483-7
Ultra Librarian 3D Model Ultra Librarian 4-1393483-7 CAD Model

Description

The 1365195-4-1393483-7 is a D-Sub connector assembly from TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HD-20
  • Connector Gender: Plug
  • Pin Gender: Male
  • Number of Positions: 9
  • Number of Rows: 2
  • Mounting Type: Free hanging (in-line)
  • Temperature Range: -55°C to 125°C
  • Grounding Indents: Yes
  • Contact Finish: Gold
  • Color: Gray
  • Materials: Polybutylene Terephthalate (PBT) and Polyester
  • Packaging: Tray
