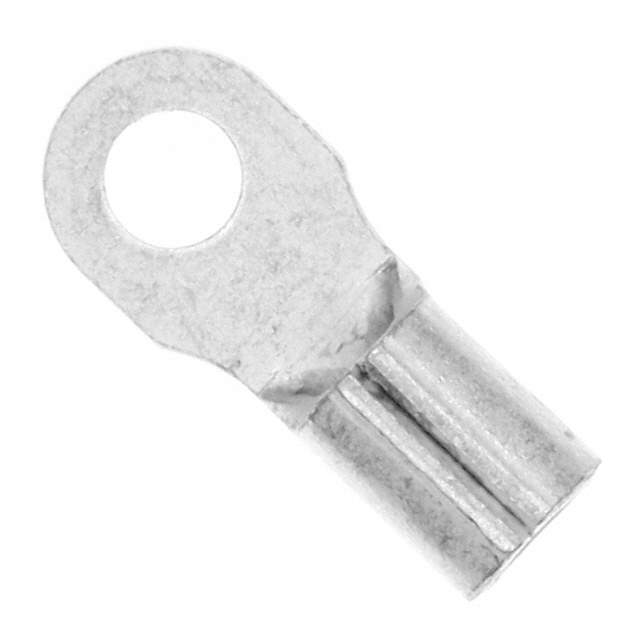

320677 Real Image
Same model may have multiple batches, images only for reference.

320677

Part No 320677
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING D-SHAPE 16-22AWG #2 / Ring Terminal Connector 2 Stud D-Shaped 16-22 AWG Crimp
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type D-Shaped
Stud/Tab Size 2 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.182" (4.62mm)
Length - Overall 0.446" (11.33mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Copper
Contact Finish Tin
Base Product Number 3206
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A28262,-320677-SI
Standard Package 1,000
Win Source Part Number 1333699-320677
Ultra Librarian 3D Model Ultra Librarian 320677 CAD Model

Description

The TE Connectivity AMP Connectors 1333699-320677 is a ring connector with serrated termination and a crimp termination style. It has a contact finish of tin and a wire gauge of 16-22 AWG. The component is non-insulated and has a thickness of 0.031" (0.79mm). The package type is bulk and the standard package is 1,000. The component is RoHS3 compliant and has an ECCN of EAR99. The connector is categorized under Connectors, Interconnects>Terminals>Ring Connectors and its manufacturer is TE Connectivity AMP Connectors.
