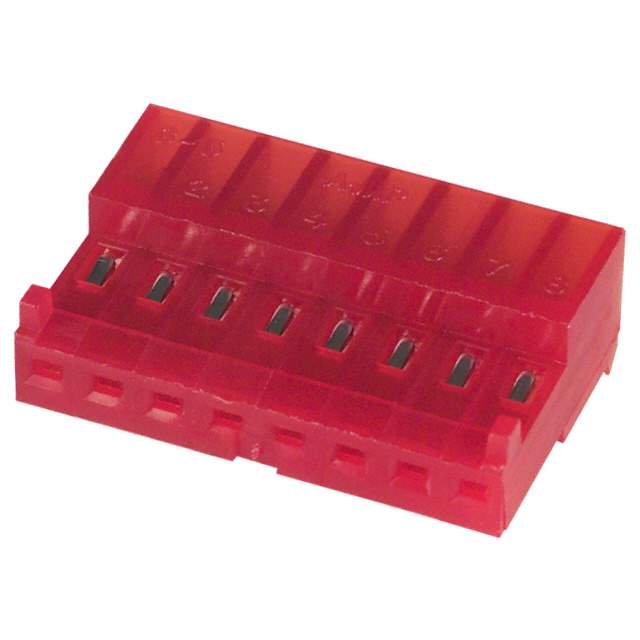

3-643813-8 Real Image
Same model may have multiple batches, images only for reference.

3-643813-8

Part No 3-643813-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 8POS IDC 22AWG TIN / 8 Position Rectangular Receptacle Connector IDC Tin 22 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Free Hanging (In-Line), Right Angle
Fastening Type Locking Ramp
Cable Termination IDC
Wire Type Discrete or Ribbon Cable
Wire Gauge 22 AWG
Features Closed End
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Color Red
Base Product Number 643813
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 36438138,A31111,3-643813-8-ND,-3-643813-8-SI
Standard Package 500
Win Source Part Number 1334034-3-643813-8
Ultra Librarian 3D Model Ultra Librarian 3-643813-8 CAD Model

Description

The 1334034-3-643813-8 is a red rectangular connector from TE Connectivity AMP Connectors that comes in a receptacle type.

  • Color: Red
  • Connector Type: Receptacle
  • Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Female Socket
  • Wire Gauge: 22 AWG
  • Fastening Type: Locking Ramp
  • Contact Finish: Tin
  • Contact Finish Thickness: 80.0µin (2.03µm)
  • Mounting Applications: Free Hanging and Panel Mount
