Same model may have multiple batches, images only for reference.

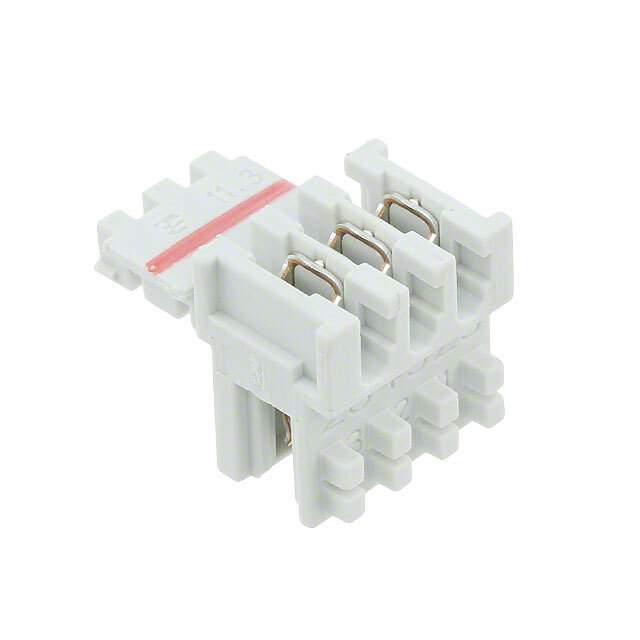

3-284932-3 Real Image
Same model may have multiple batches, images only for reference.

3-284932-3

Part No 3-284932-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN RCPT 3POS IDC 22-24AWG TIN / 3 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr TE Connectivity AMP Connectors
Series DuoPlug
Package Tray
Connector Type Receptacle
Contact Type Female Blade Socket
Number of Positions 3
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Gauge 22-24 AWG
Features Mates to PCB
Contact Finish Tin
Base Product Number 284932
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names -3-284932-3-SI,A120690
Standard Package 280
Win Source Part Number 1038858-3-284932-3
Ultra Librarian 3D Model Ultra Librarian 3-284932-3 CAD Model

Description

The TE Connectivity AMP Connectors DuoPlug series is a rectangular connector that is free hanging and panel mountable.

  • Positions: 3
  • Pitch: 0.098" (2.50mm)
  • Mates To: PCB
  • Connector Type: receptacle
  • Contact Type: female blade socket
  • Package: tray
  • Wire Gauge: 22-24 AWG
  • Cable Termination: IDC
  • Standard Package: 280
  • MSL Level: 1 (Unlimited)
  • REACH: vendor undefined
  • HTSUS: 8536.69.8000
