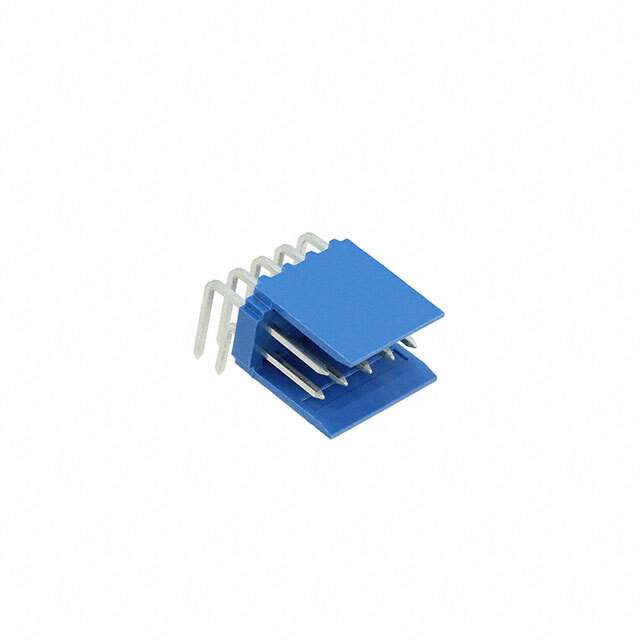

Part No 281742-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM / Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series HE13/HE14
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -40°C ~ 100°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Applications General Purpose
Base Product Number 281742
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A122596,-281742-5-SI,281742-5-ND
Standard Package 2,000
Win Source Part Number 1021916-281742-5
Ultra Librarian 3D Model Ultra Librarian 281742-5 CAD Model

Description

The HE13/HE14 series male pin header connector is a two-row, ten-position connector that is ideal for general-purpose applications.

  • Contact Shape: square
  • Contact Material: phosphor bronze
  • Contact Length (Mating): 0.276 inches
  • Contact Length (Post): 0.114 inches
  • Voltage Rating: -
  • Insulation Height: 0.300 inches
  • Mounting Type: through-hole, right-angle
  • Design: shrouded with a 2-wall design
  • Pitch Mating: 0.100 inches (2.54mm)
  • Contact Finish - Mating: tin
  • Insulation Material: thermoplastic
  • Temperature Range: -40°C to 100°C
