2301838-2 TE Connectivity
Same model may have multiple batches, images only for reference.

2301838-2

Part No 2301838-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

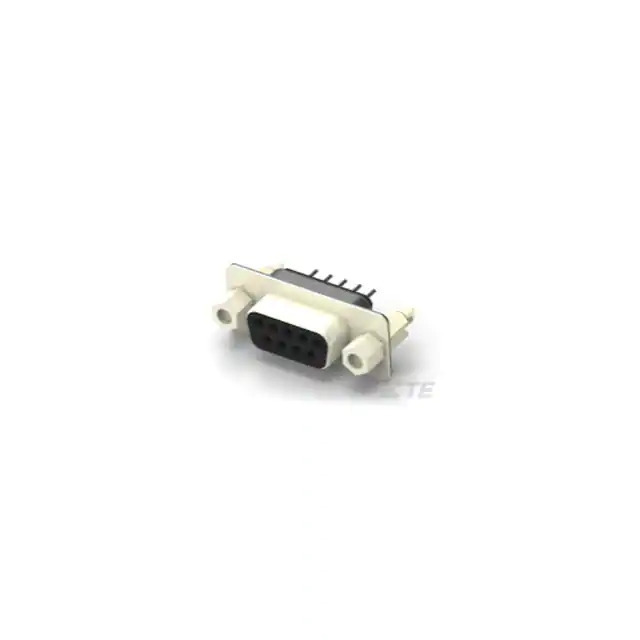

Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin-Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.5A
Backset Spacing -
Features Board Lock
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 2301838
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1365130-2301838-2
Ultra Librarian 3D Model Ultra Librarian 2301838-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 is a D-Sub connector assembly. TE Connectivity AMP Connectors.

  • Temperature Range: -55°C to 105°C
  • Base Product Number: 2301838
  • Category: D-Sub, D-Shaped Connectors
  • Mounting Type: Through-hole
  • Contact Finish: Gold
  • Contact Type: Receptacle, female sockets
  • Positions: 9
  • Rows: 2
  • Packaging: Tray
