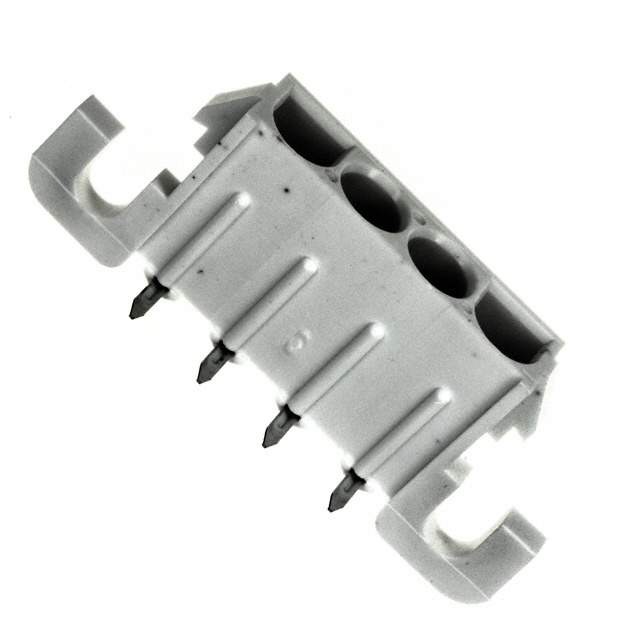

2-350944-0 Real Image
Same model may have multiple batches, images only for reference.

2-350944-0

Part No 2-350944-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 6.35MM / Connector Header Through Hole, Right Angle 4 position 0.250" (6.35mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.160" (4.06mm)
Insulation Height 0.360" (9.14mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Mounting Flange
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) 12A
Voltage Rating 600VAC
Applications General Purpose
Base Product Number 350944
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A14309
Standard Package 1,120
Win Source Part Number 1332837-2-350944-0
Ultra Librarian 3D Model Ultra Librarian 2-350944-0 CAD Model

Description

The TE Connectivity AMP Connectors 1332837-2-350944-0 is a male pin header with four positions.

  • Manufacturer: TE Connectivity AMP Connectors
  • Connector Type: Male pin header
  • Positions: Four
  • Mounting: Through-hole, right-angle
  • Insulation Material: White polyamide (PA), nylon
  • Contact Finish: Gold with a thickness of 30.0μin (0.76μm)
  • Contact Material: Phosphor bronze
  • Voltage Rating: 600VAC
  • Current Rating: 12A
  • Feature: Shrouded with 4 walls
  • Contact Shape: Circular
  • Insulation Height: 0.360" (9.14mm)
  • Pitch Mating: 0.250" (6.35mm)
  • Application: Board to cable/wire
