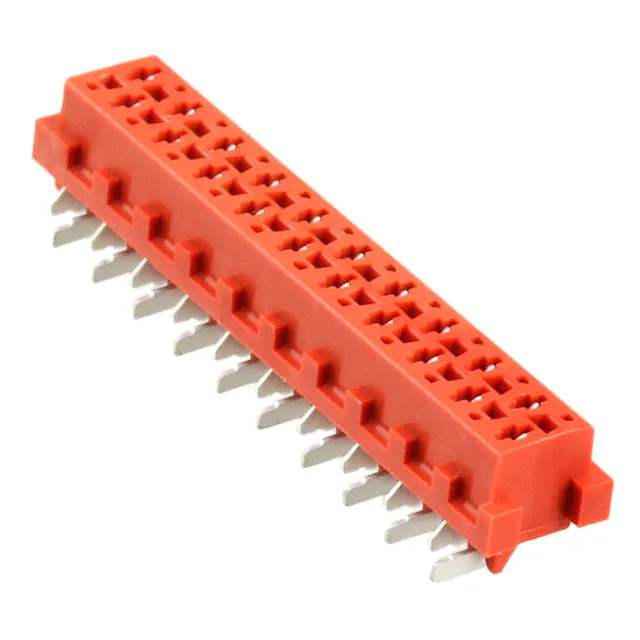

2-188275-0 Real Image
Same model may have multiple batches, images only for reference.

2-188275-0

Part No 2-188275-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 20POS 0.1 TIN SMD / 20 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr TE Connectivity
Series Micro-MaTch
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.209" (5.30mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 188275
Standard Package 900 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854583-2-188275-0
Ultra Librarian 3D Model Ultra Librarian 2-188275-0 CAD Model

Description

The 854583-2-188275-0 is a 20-position female socket connector from the Micro-MaTch series by TE Connectivity.

  • Series: Micro-MaTch
  • Positions: 20
  • Contact Gender: Female
  • Contact Type: Forked
  • Mounting: Surface mount
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 100VDC
  • Contact Material: Phosphor bronze
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA46), nylon 4/6, glass-filled
  • Insulation Color: Red
  • Contact Shape: Forked
  • Temperature Range: -40°C to 105°C
  • Applications: Automotive and general purpose
  • Packaging: Tape & reel
  • Package Quantity: 900 pieces
