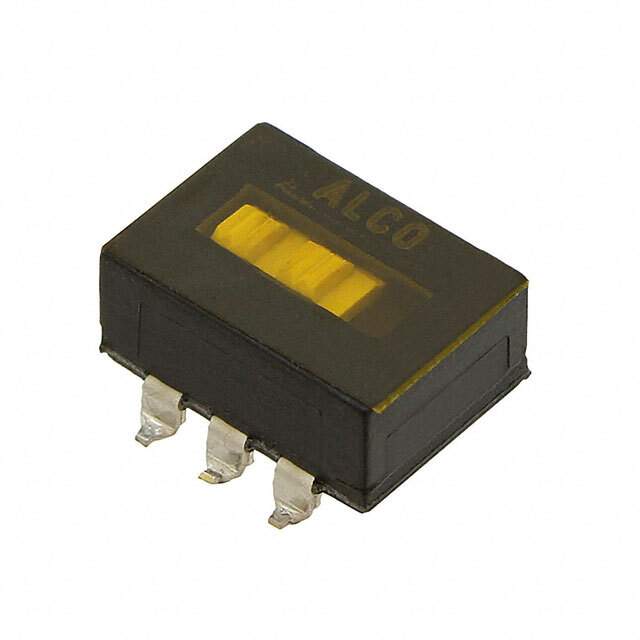

1825011-5 Real Image
Same model may have multiple batches, images only for reference.

1825011-5

Part No 1825011-5
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE DPDT 0.4VA 20V / Slide Switch DPDT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ASF
Package Tube
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Screwdriver Slot
Actuator Length Flush
Contact Material Copper Alloy
Contact Finish Gold
Mounting SMD (SMT)
Termination Style Gull Wing
Features Tape Seal
Temperature Range - Operating -40°C ~ 80°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.79mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 950gf
Base Product Number 1825011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names 1825011-5-ND,ASF22GL04-ND,18250115,450-1799,2266-1825011-5,ASF22GL04,-ASF22GL04-SI-ND,-ASF22GL04-SI,-1825011-5-SI
Standard Package 50
Win Source Part Number 1168730-1825011-5
Ultra Librarian 3D Model Ultra Librarian 1825011-5 CAD Model

Description

The ASF series slide switch from TE Connectivity ALCOSWITCH Switches is a DPDT switch.

  • Switch Type: DPDT
  • Actuator Type: Screwdriver Slot
  • Actuator Length: Flush
  • Contact Timing: Shorting (MBB)
  • Switch Function: On-On
  • Switch Travel: 2.79mm
  • Operating Force: 950gf
  • Electrical Life: 15,000 cycles
  • Mechanical Life: 15,000 cycles
  • Termination Style: Gull-Wing
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Actuator Material: Polyamide (PA46), Nylon 4/6
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA (AC/DC)
  • Operating Temperature Range: -40°C to 80°C
  • Package: Tube
  • Tape Seal Feature: Yes
  • Application: Slide Switches
