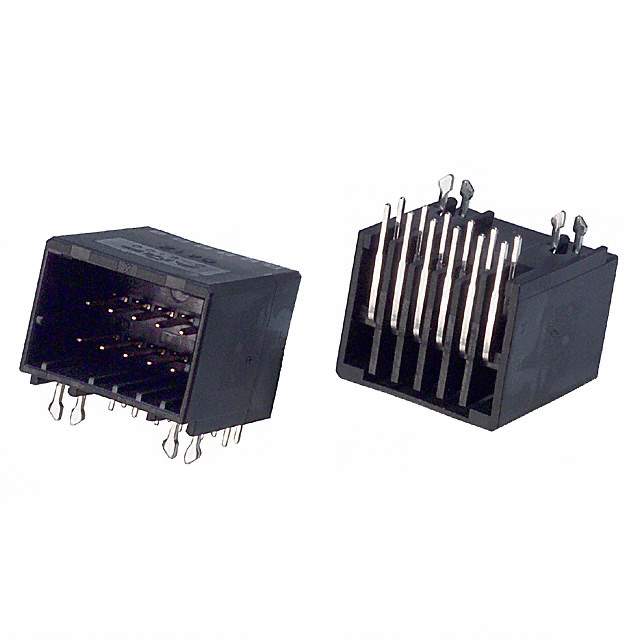

1376020-1 Real Image
Same model may have multiple batches, images only for reference.

1376020-1

Part No 1376020-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 12POS 2.5MM / Connector Header Through Hole, Right Angle 12 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Dynamic D-2100
Package Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.098" (2.50mm)
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.579" (14.70mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A
Voltage Rating 250VAC
Applications General Purpose, Industrial
Base Product Number 1376020
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1376020-1-CSI,A29824,13760201,-1376020-1-SI,A29824-NDR
Standard Package 26
Win Source Part Number 1216645-1376020-1
Ultra Librarian 3D Model Ultra Librarian 1376020-1 CAD Model

Description

Dynamic D-2100 is a series of male pin rectangular connectors manufactured by TE Connectivity AMP Connectors.

  • Connector Type: Header
  • Positions: 12
  • Rows: Two
  • Fastening Types: Board lock and detent lock
  • Applications: General purpose and industrial
  • Voltage Rating: 250VAC
  • Contact Material: Copper alloy
  • Mating Contact Finish: Gold
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 105°C
  • Mounting: Through-hole
  • Angle: Right-angled
  • Applications: Computers, telecommunications, and consumer electronics
