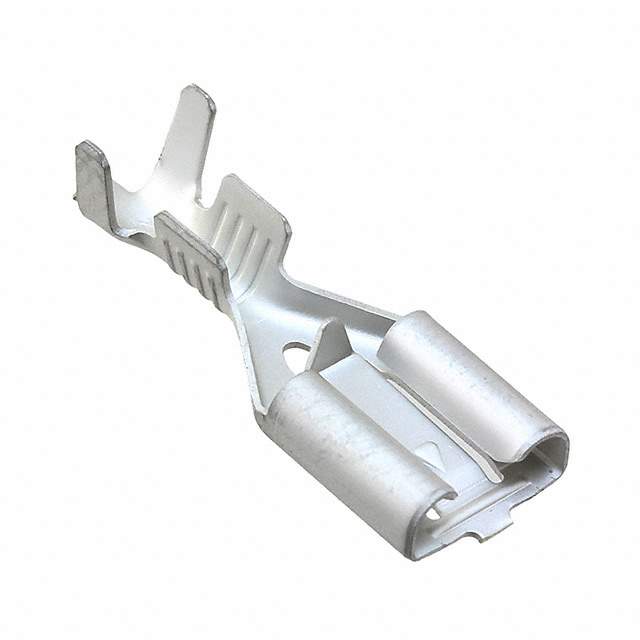

1217094-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.293" (7.44mm)
Length - Overall 0.771" (19.58mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.155" (2.29mm ~ 3.94mm)
Base Product Number 1217094
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -1217094-2-CSI,-1217094-2-SI,A116170CT,1217094-2-ND,A116170TR
Standard Package 10,000
Win Source Part Number 1333646-1217094-2
Ultra Librarian 3D Model Ultra Librarian 1217094-2 CAD Model

Description

The 1333646-1217094-2 is a quick disconnect connector from TE Connectivity AMP Connectors.

  • Terminal Type: Female
  • Termination Style: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.293" (7.44mm)
  • Insulation Diameter: 0.090" ~ 0.155" (2.29mm ~ 3.94mm)
  • Insulation: Non-Insulated
  • Overall Length: 0.771" (19.58mm)
  • Mounting Type: Free Hanging (In-Line)
  • Standard Package: 10,000
  • Other Part Numbers: -1217094-2-CSI, -1217094-2-SI, A116170CT, A116170TR, and 1217094-2-ND
