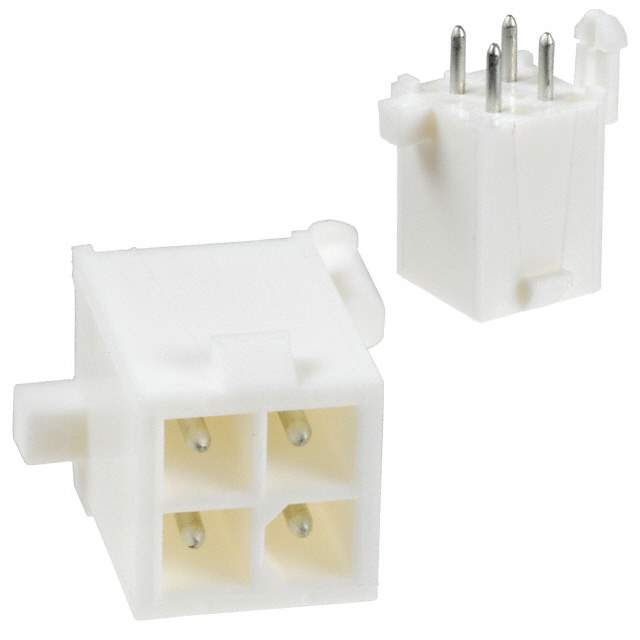

1-770174-0 Real Image
Same model may have multiple batches, images only for reference.

1-770174-0

Part No 1-770174-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 4.14MM / Connector Header Through Hole 4 position 0.163" (4.14mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.163" (4.14mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.163" (4.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.175" (4.45mm)
Insulation Height 0.531" (13.50mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications General Purpose
Base Product Number 770174
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A32453,17701740,-1-770174-0-CSI,1-770174-0-ND,-1-770174-0-SI
Standard Package 200
Win Source Part Number 1334383-1-770174-0
Ultra Librarian 3D Model Ultra Librarian 1-770174-0 CAD Model

Description

This TE Connectivity AMP Connectors header is a male pin connector with 4 positions and 2 rows.

  • Positions: 4
  • Rows: 2
  • Pitch: 0.163 inches (4.14mm)
  • Termination: solder
  • Contact Finish: tin
  • Insulation Material: polyamide (PA), nylon
  • Voltage Rating: 600VAC
  • Temperature Range: -20°C to 85°C
  • Mounting: through hole
  • Fastening Type: locking ramp
  • Ideal For: general purpose applications
