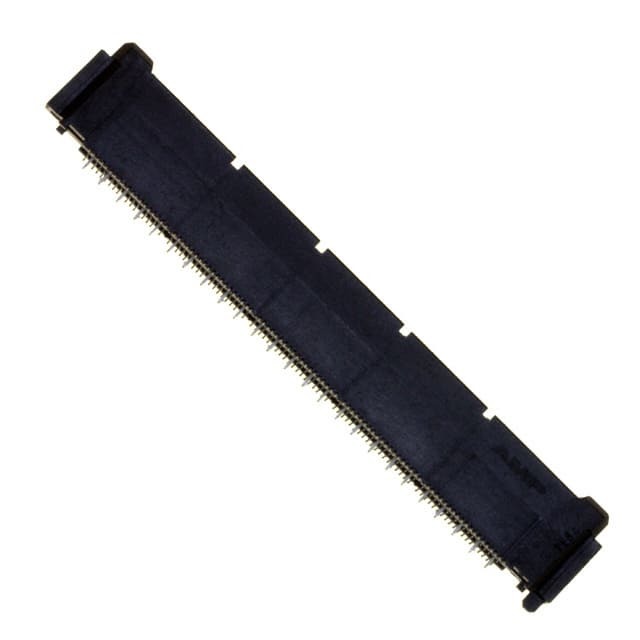

Same model may have multiple batches, images only for reference.
1-5767005-2
Same model may have multiple batches, images only for reference.

1-5767005-2

Part No 1-5767005-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 190POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series MICTOR
Package Tube
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 190
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 12.57mm, 21.6mm
Height Above Board 0.484" (12.29mm)
Base Product Number 5767005
Standard Package 7 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854047-1-5767005-2
Ultra Librarian 3D Model Ultra Librarian 1-5767005-2 CAD Model

Description

The TE Connectivity electronic component with Win Source Part Number 854047-1-5767005-2 is a mezzanine connector in the MICTOR series.

  • Positions: 190
  • Pitch: 0.025" (0.64mm)
  • Connector Type: Plug with outer shroud contacts
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
  • Package: Tube
  • Mated Stacking Heights: 12.57mm and 21.6mm
  • Height Above Board: 0.484" (12.29mm)
  • Standard Package: 7 pieces
  • Mounting Type: Surface Mount
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
