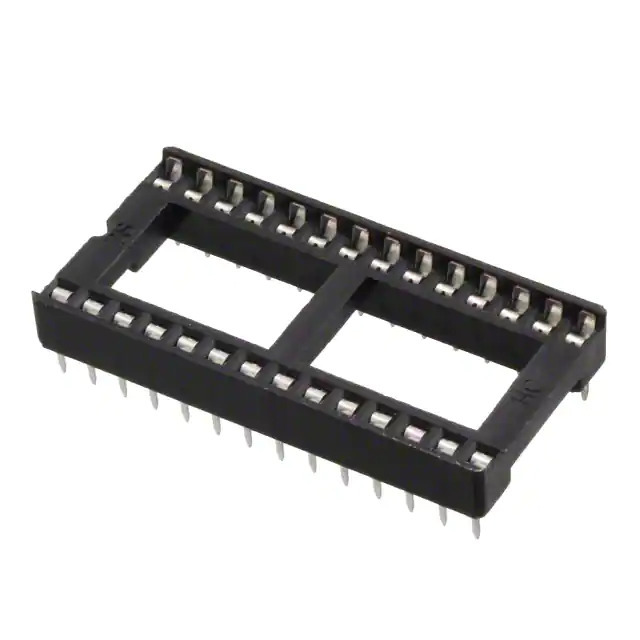

The 1363452-1-2199299-2 is an IC socket from TE Connectivity AMP Connectors.

• Series: Diplomate DL
• Mounting Type: Through Hole
• Temperature Range: -40°C to 105°C
• DIP Package Compatibility: 0.6" (15.24mm) row spacing
• Current Rating: 1A
• Pitch: 0.100" (2.54mm)
• Termination: Solder
• Contact Finish (Mating): Tin (60.0μin (1.52μm))
• Contact Finish (Post): Tin (60.0μin (1.52μm))
• Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
• Flammability Rating: UL94 V-0
• Positions: 28 (2 x 14)
• Contact Material (Mating): Phosphor Bronze
• Contact Material (Post): Nickel
• Post Pitch: 0.100" (2.54mm)
• Termination Post Length: 0.118" (3.00mm)
• Contact Resistance: 20mOhm
