Same model may have multiple batches, images only for reference.

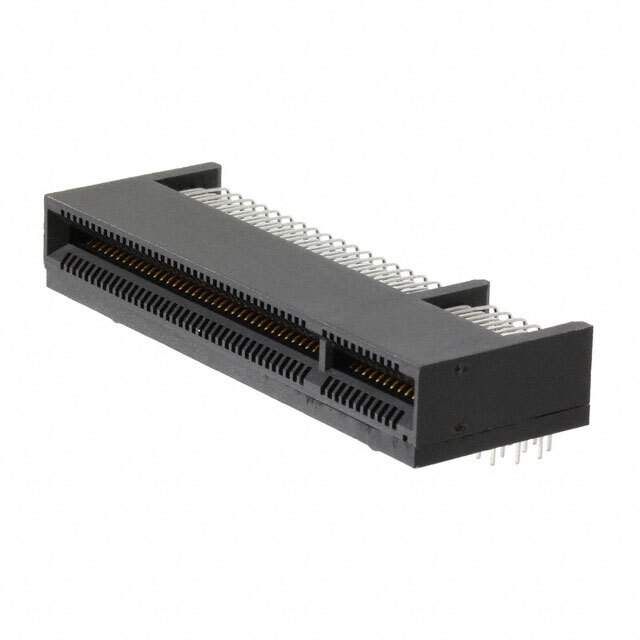

1-1761465-3 Real Image
Same model may have multiple batches, images only for reference.

1-1761465-3

Part No 1-1761465-3
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 98POS 0.039 / 98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Card Type PCI Express™
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Through Hole, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Temperature Range - Operating -40°C ~ 85°C
Material - Insulation Thermoplastic
Base Product Number 1761465
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -1-1761465-3-SI,A108952
Standard Package 50
Win Source Part Number 1334027-1-1761465-3
Ultra Librarian 3D Model Ultra Librarian 1-1761465-3 CAD Model

Description

This TE Connectivity AMP Connectors card edge connector is a high-quality electronic component suitable for various applications.

  • Pitch: 0.039 inches
  • Positions: 98
  • Card Type: PCI Express cards
  • Mounting Style: Through-Hole, Right-Angle
  • Gender: Female
  • Readout: Dual
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
  • Standard Package: 50
