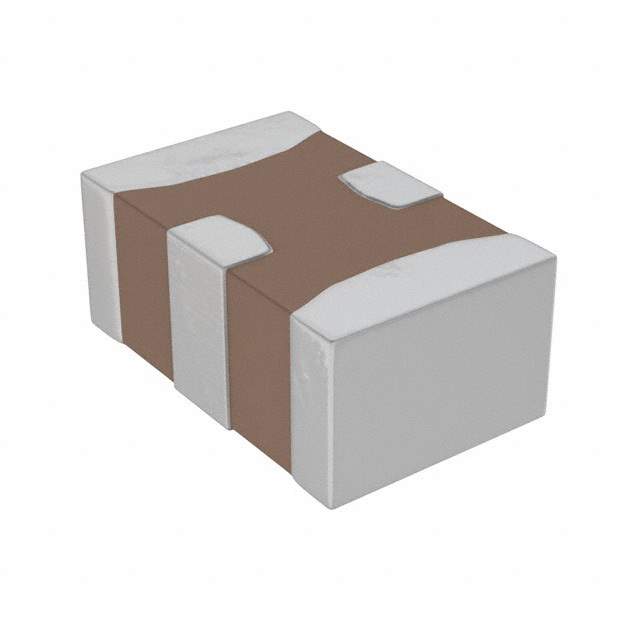

YFF21AC1H220MT0Y0N Real Image
Same model may have multiple batches, images only for reference.

YFF21AC1H220MT0Y0N

Part No YFF21AC1H220MT0Y0N
Manufacturer TDK Corporation
Catalog Feed Through Capacitors
Description AUTOMOTIVE GRADE FEED THROUGH FI / 22 pF Feed Through Capacitor 50V 1 A 0805 (2012 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Feed Through Capacitors
Mfr TDK Corporation
Series YFF-AC
Package Tape & Reel
Capacitance 22 pF
Tolerance ±20%
Voltage - Rated 50V
Current 1 A
Temperature Range - Operating -55°C ~ 125°C
Insertion Loss 30dB @ 3GHz ~ 5GHz
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 4 PC Pad
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 445-175323-6,445-175323-1,445-175323-2
Standard Package 4,000
Win Source Part Number 1106054-YFF21AC1H220MT0Y0N
Ultra Librarian 3D Model Ultra Librarian YFF21AC1H220MT0Y0N CAD Model

Description

The YFF-AC series feed through capacitors are designed to be used in filters in various electronic devices. The capacitor has a capacitance of 22 pF with a tolerance of ±20% and a voltage rating of 50V.

  • Series: YFF-AC
  • Application: Filters
  • Capacitance: 22 pF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Insertion Loss: 30dB @ 3GHz ~ 5GHz
  • Package: Tape and Reel
  • Standard Package: 4,000
  • Mounting Type: SMD (SMT)
  • Package/Case Size: 0805 (2012 Metric), 4 PC Pad
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • AEC-Q200: Rated
  • Manufacturer: TDK Corporation
