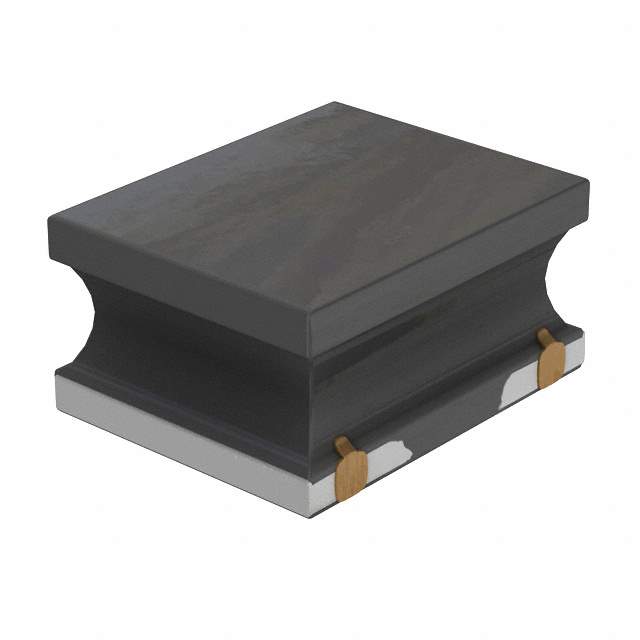

The VLS252012HBX-R24M is a wire-wound inductor manufactured by TDK Corporation, designed for use in power supply circuits and other applications where a compact size and high-frequency performance are required. Part of the VLS series, it offers a good balance of size and electrical characteristics.

Applications:

• DC-DC converters
• Power supply circuits for portable electronics
• Noise filters
• Choke coils
• Buck converters

Features:

• Small size: 2.5mm x 2.0mm x 1.2mm
• Inductance value: 0.24µH (R24)
• Magnetically shielded construction to minimize EMI
• High current carrying capacity
• Operating temperature range: -40°C to +105°C (including self-temperature rise)
• Excellent solderability

Benefits:

• Compact Design: Ideal for space-constrained applications, such as portable devices and consumer electronics.
• High-Frequency Performance: Optimized for use in high-frequency switching power supplies.
• Reduced EMI: Magnetically shielded construction minimizes electromagnetic interference, improving circuit stability.
• Wide Operating Temperature Range: Suitable for use in various environmental conditions.
• Efficient Power Delivery: High current capability allows for efficient power transfer.

Additional Details:

The VLS252012HBX-R24M inductor utilizes a ferrite core material, which contributes to its high inductance value and good temperature stability. The magnetic shielding is a key feature for reducing unwanted electromagnetic interference (EMI), which is crucial for sensitive electronic devices. The inductance tolerance is typically ±20%. When selecting this inductor, it's essential to consider the saturation current, which is the point at which the inductance starts to decrease significantly. The DC resistance (DCR) and self-resonant frequency (SRF) are also important parameters that should be reviewed on the manufacturer's datasheet.
