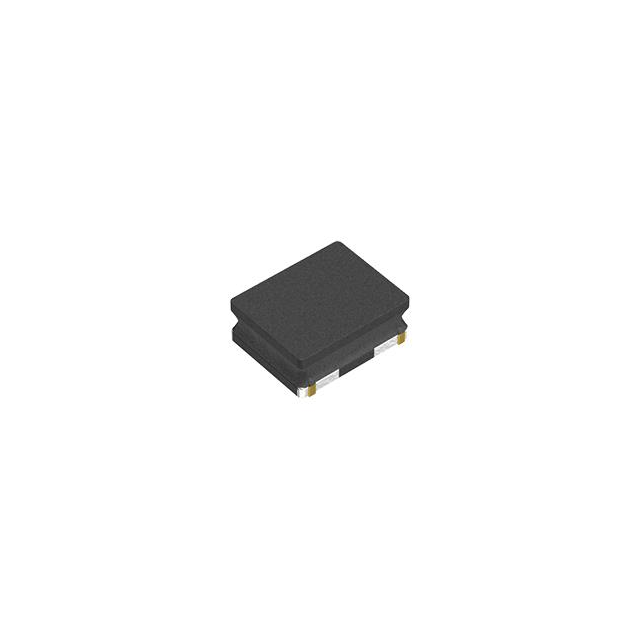

VLS252010HBX-R33M Real Image
Same model may have multiple batches, images only for reference.

VLS252010HBX-R33M

Part No VLS252010HBX-R33M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330NH 3.74A 31MOHM SMD / 330 nH Shielded Drum Core, Wirewound Inductor 3.74 A 31mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Metal
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 3.74 A
Current - Saturation (Isat) 5.03A
Shielding Shielded
DC Resistance (DCR) 31mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 2520
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 445-VLS252010HBX-R33MTR
Standard Package 2,000
Win Source Part Number 1327841-VLS252010HBX-R33M
Ultra Librarian 3D Model Ultra Librarian VLS252010HBX-R33M CAD Model

Description

The TDK Corporation VLS252010HBX-R33M is a shielded drum core, wirewound fixed inductor that features a metal core.

  • Inductance: 330 nH
  • Tolerance: ±20%
  • DC Resistance: 31mOhm max
  • Current Rating: 3.74 A
  • Standard Package: 2,000
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 105°C
  • Height: 0.039” (1.00mm) when seated
