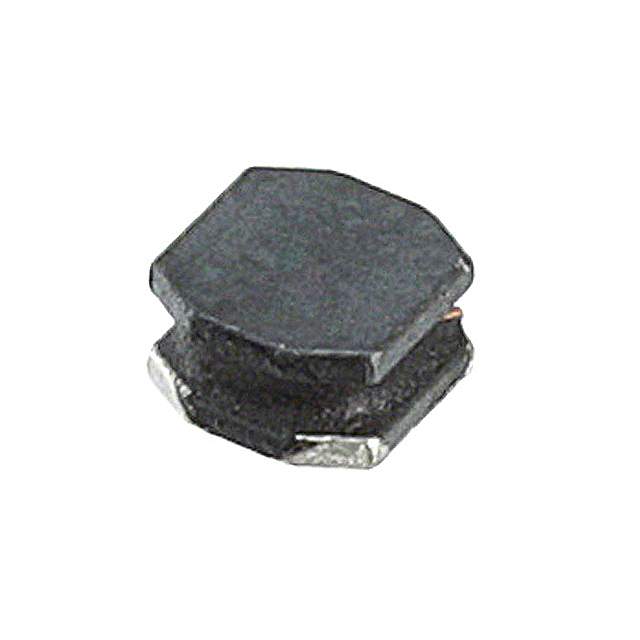

The VLS2010ET-6R8N is a wire-wound inductor manufactured by TDK Corporation, primarily used in power circuit applications. Its key characteristics include a compact design and stable inductance across varying temperatures and currents, making it a reliable component for electronic devices, particularly where space is limited and consistent performance is essential.

Applications

• DC-DC converters
• Power supplies for portable devices
• Noise filters
• Buck and boost converters
• General-purpose power management circuits

Features

• Small footprint: 2.0 x 1.0 x 1.0 mm
• Magnetically shielded structure
• Excellent inductance stability over temperature changes
• High rated current capacity
• Compliant with RoHS standards

Benefits

• Space-saving design allows for higher component density on PCBs.
• Consistent performance under different temperature conditions ensures reliable operation.
• Reduced EMI due to the shielded construction.
• Improved power efficiency thanks to low DC resistance.
• Environmentally friendly due to RoHS compliance.

Technical Specifications

Inductance: 6.8 μH
Tolerance: ±30%
DC Resistance (DCR): 0.325 Ω (typical)
Rated Current (Irms): 0.27 A
Saturation Current (Isat): 0.3 A
Operating Temperature Range: -40°C to +125°C (including self-temperature rise)

The VLS2010ET-6R8N inductor is built using high-quality materials and precise manufacturing techniques to guarantee long-term reliability and stable electrical characteristics. The magnetically shielded construction is particularly beneficial in applications where electromagnetic interference must be minimized. The small size and robust performance characteristics make it a suitable choice for power management in compact electronic devices.
