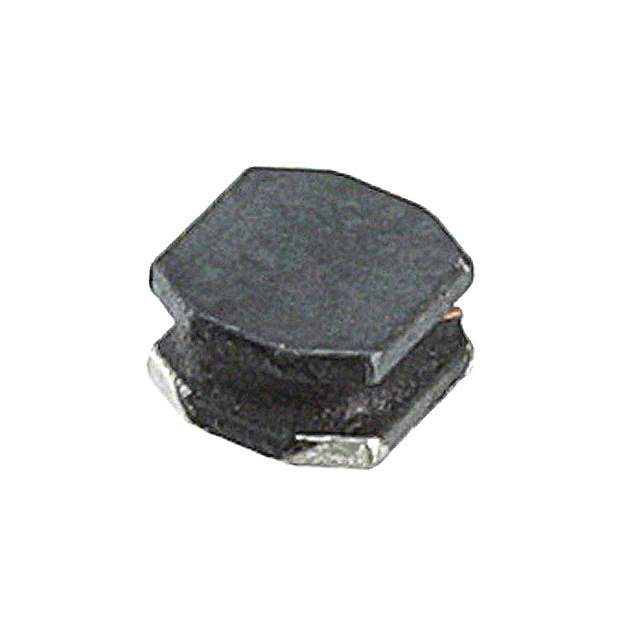

The VLS2010ET-1R5N is a wire-wound inductor from TDK Corporation, designed for power circuit applications. This inductor is characterized by its compact size and excellent inductance stability under varying temperatures and currents, making it suitable for use in a wide range of electronic devices where space is a constraint and reliability is crucial.

Applications

• DC-DC converters
• Power supplies
• Portable electronic devices
• Smartphones
• Tablets

Features

• Small size: 2.0 x 1.0 x 1.0 mm
• Magnetically shielded construction
• Excellent inductance stability over temperature
• High current capability
• RoHS compliant

Benefits

• Reduced board space requirements due to its compact size.
• Stable performance in demanding temperature environments ensures consistent operation.
• Minimized electromagnetic interference (EMI) due to the shielded construction.
• Improved efficiency in power circuits due to low DC resistance.
• Environmentally friendly due to RoHS compliance.

Technical Specifications

Inductance: 1.5 μH
Tolerance: ±30%
DC Resistance (DCR): 0.115 Ω (typical)
Rated Current (Irms): 0.45 A
Saturation Current (Isat): 0.5 A
Operating Temperature Range: -40°C to +125°C (including self-temperature rise)

The VLS2010ET-1R5N inductor is manufactured using high-quality materials and processes to ensure reliable performance and long-term stability. Its shielded construction helps to minimize electromagnetic interference, making it suitable for use in sensitive electronic devices. The inductor's small size and high current capability make it an ideal choice for power circuit applications in portable electronic devices where space is limited. The device's inductance changes slightly with temperature, which allows for predictable behavior in different operating conditions.
