Same model may have multiple batches, images only for reference.

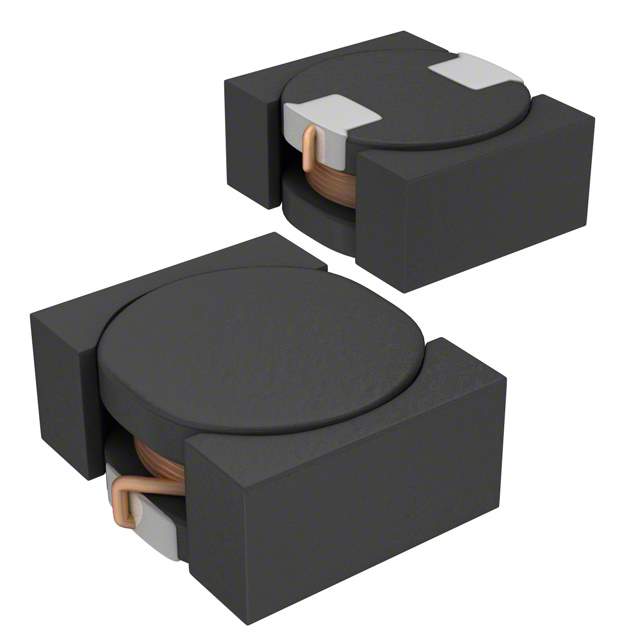

VLF302515MT-150M Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-150M

Part No VLF302515MT-150M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 15UH 990MA 330 MOHM / Inductor Power Shielded Wirewound 15uH 20% 1MHz Ferrite 0.99A 0.33Ohm DCR T/R
Datasheet
VLF302515MT-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-MT
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 990mA
Current - Saturation 560mA
Shielding Shielded
DC Resistance (DCR) 330 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Win Source Part Number 799105-VLF302515MT-150M
Popularity Medium
Supply and Demand Status Limited
Family Name VLF-M
ECCN EAR99
Country of Origin Singapore
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-150M CAD Model

Description

The TDK Corporation VLF-MT series wirewound inductor is a shielded component manufactured by TDK Corporation.

  • Current Rating: 990mA
  • Inductance: 15μH
  • Core Material: Ferrite
  • DC Resistance: 330 mOhm Max
  • Package: Nonstandard
  • Mounting: SMD
  • Tolerance: ±20%
  • Current Saturation: 560mA
  • Height: 0.059" (1.50mm)
  • Dimensions: 0.118" L x 0.098" W (3.00mm x 2.50mm)
  • Halogen-Free: Yes
  • Supply and Demand Status: Limited
  • EOL Date: 2022 (estimated)
