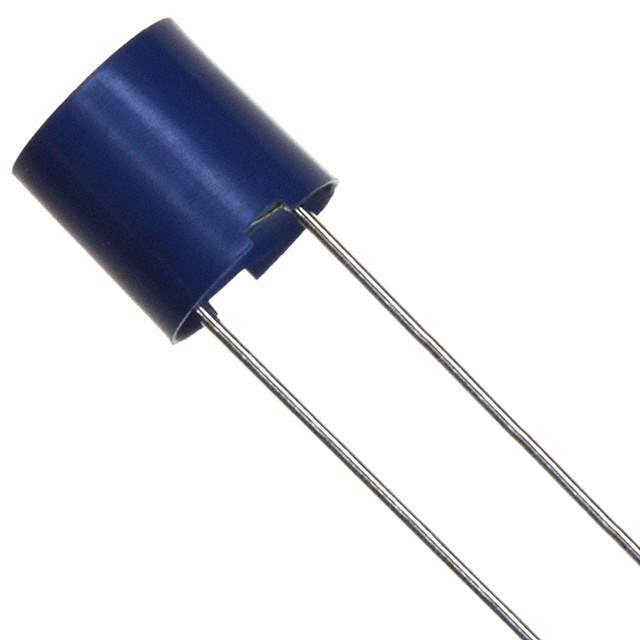

Same model may have multiple batches, images only for reference.

TSL0808RA-150K2R1-PF

Name: TSL0808RA-150K2R1-PF
Brand: TDK Corporation
SKU: 382361
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSL0808RA-150K2R1-PF
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 15UH 2.1A 42 MOHM TH
Datasheet	TSL0808RA-150K2R1-PF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	AMMO PACKAGE
Status	Obsolete(EOL)
Inductance	15μH
Tolerance	±10%
Current Rating	2.1A
Current - Saturation	2.1A
DC Resistance (DCR)	42 mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	13MHz
Temperature Range - Operating	-20°C to 85°C
Frequency - Test	1kHz
Mounting	Through Hole
Height - Seated (Max)	0.346" (8.80mm)
Win Source Part Number	054474-TSL0808RA-150K2R1-PF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	TSL0808
Introduction Date	August 06, 1999
ECCN	EAR99
Ultra Librarian 3D Model	Ultra Librarian TSL0808RA-150K2R1-PF CAD Model

Alternative Products

Description

The TDK Corporation TSL0808RA-150K2R1-PF inductor is a through-hole component that is ideal for use in a variety of electronic applications.

Current Rating: 2.1A
Inductance: 15μH
Height: 0.346" (8.80mm)
Tolerance: ±10%
Saturation Current: 2.1A
Q @ Freq: 20 @ 2.52MHz
Self-Resonant Frequency: 13MHz
Frequency Test: 1kHz
Product Family: TSL0808
Category: Inductors, coils, and chokes
DC Resistance (DCR): 42 mOhm Max
Status: Obsolete(EOL)
Operating Temperature Range: -20°C to 85°C
Alternative parts: 822LY-150K, A823LY-150K=R, and 622LY-150K
