Same model may have multiple batches, images only for reference.

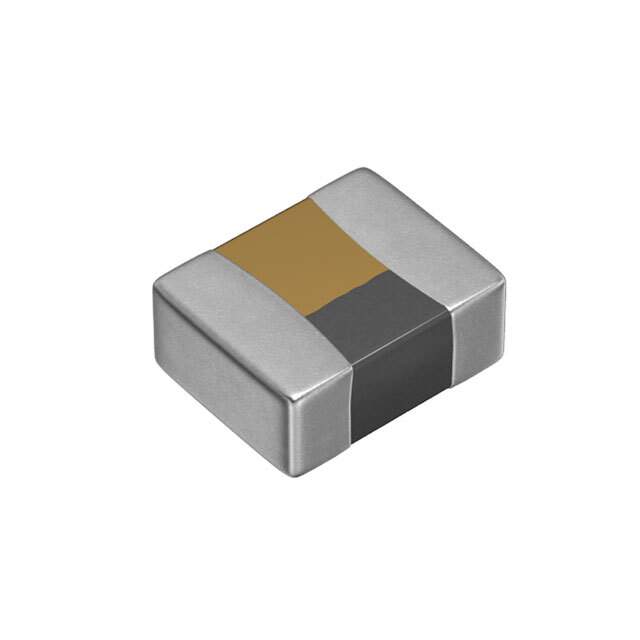

TFM201208ALD-1R0MTCA Real Image
Same model may have multiple batches, images only for reference.

TFM201208ALD-1R0MTCA

Part No TFM201208ALD-1R0MTCA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 2.4A 85 MOHM SMD / 1 µH Shielded Thin Film Inductor 2.4 A 85mOhm Max 0805 (2012 Metric)
Datasheet
TFM201208ALD-1R0MTCA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series TFM-ALD
Package Tape & Reel
Type Thin Film
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 2.9A
Shielding Shielded
DC Resistance (DCR) 85mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-181616-1,445-181616-2,445-181616-6
Standard Package 3,000
Win Source Part Number 989420-TFM201208ALD-1R0MTCA
Ultra Librarian 3D Model Ultra Librarian TFM201208ALD-1R0MTCA CAD Model

Description

The TDK Corporation TFM-ALD Thin Film Inductor is a high-quality electronic component that can be used in a variety of applications.

  • Manufacturer: TDK Corporation
  • Product: TFM-ALD Thin Film Inductor
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • Packaging: Tape and Reel
  • Package Size: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Supply and Demand Status: Balanced
  • Standard Package: 3000
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8504.50.8000
