Same model may have multiple batches, images only for reference.

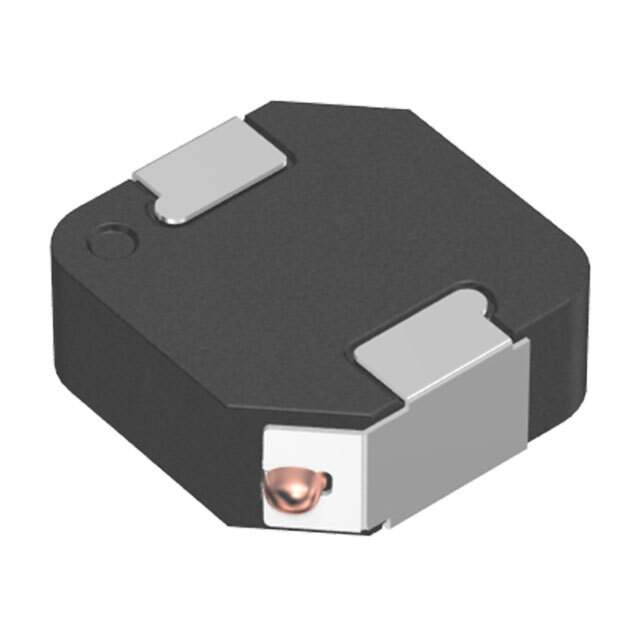

SPM10040T-1R0M Real Image
Same model may have multiple batches, images only for reference.

SPM10040T-1R0M

Part No SPM10040T-1R0M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 18A
Shielding Shielded
DC Resistance (DCR) 4.2mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 445-175125-1,445-175125-2,445-175125-6
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272651-SPM10040T-1R0M
Ultra Librarian 3D Model Ultra Librarian SPM10040T-1R0M CAD Model

Description

The TDK Corporation SPM10040T-1R0M is a shielded fixed inductor with a drum core and wirewound type.

  • Inductance: 1 µH
  • Tolerance: ±20%
  • Height Seated (Max): 0.157 inches (4.00mm)
  • Package or Case: Non-standard
  • DC Resistance (DCR): 4.2mOhm max
  • Current Rating: 15 A
  • Saturation Current: 18A
  • Inductance Frequency-Test: 100 kHz
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99 compliant
  • Suitable for: Use in various applications, including power supplies, DC-DC converters, and voltage regulators
