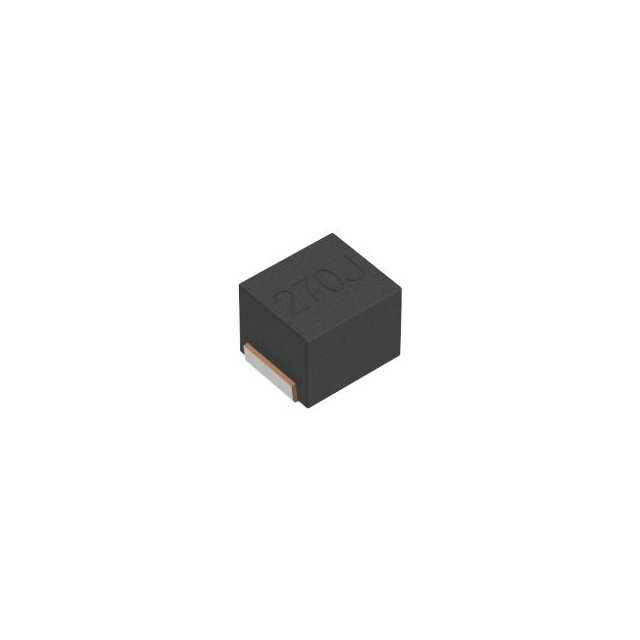

NLV25T-R10J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-R10J-PFD

Part No NLV25T-R10J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100NH 280MA 800 MOHM / Inductor General Purpose Chip Molded/Unshielded Wirewound 0.1uH 5% 100MHz 20Q-Factor Ferrite 0.28A 0.8Ohm DCR 1008 Automotive T/R
Datasheet
NLV25T-R10J-PFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series NLV-PFD
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 100nH
Tolerance ±5%
Current Rating 280mA
Shielding Unshielded
DC Resistance (DCR) 800 mOhm Max
Q @ Freq 20 @ 100MHz
Frequency - Self Resonant 800MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Win Source Part Number 790734-NLV25T-R10J-PFD
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Family Name NLV-PFD
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian NLV25T-R10J-PFD CAD Model

Description

The TDK Corporation NLV25T-R10J-PFD is a wirewound type inductor that is unshielded and has an inductance of 100nH.

  • Package: 1008 (2520 Metric)
  • Current Rating: 280mA
  • Tolerance: ±5%
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 100MHz
  • Test Frequency: 100MHz
  • DC Resistance (DCR): 800 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
