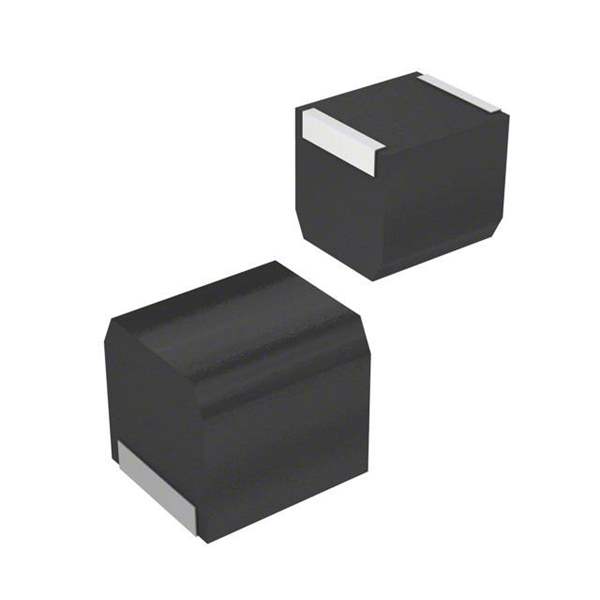

NL565050T-822J-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NL565050T-822J-PF

Part No NL565050T-822J-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 8.2MH 28MA 125 OHM SMD
Datasheet
NL565050T-822J-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 8.2mH
Tolerance ±5%
Current Rating 28mA
DC Resistance (DCR) 125 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 600kHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 252kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 025470-NL565050T-822J-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NL565050T-822J-PF CAD Model

Description

The NL565050T-822J-PF is a wirewound inductor with a current rating of 28mA and an inductance of 8.2mH from TDK.

  • Component: Wirewound Inductor
  • Manufacturer: TDK
  • Current Rating: 28mA
  • Inductance: 8.2mH
  • Height: 0.197" (5.00mm)
  • Mounting: Surface Mount
  • Tolerance: ±5%
  • Q @ Freq: 30 @ 252kHz
  • Frequency Self-Resonant: 600kHz
  • Frequency Test: 252kHz
  • DC Resistance (DCR): 125 Ohm Max
  • Application: Inductors, Coils, Chokes
