Same model may have multiple batches, images only for reference.

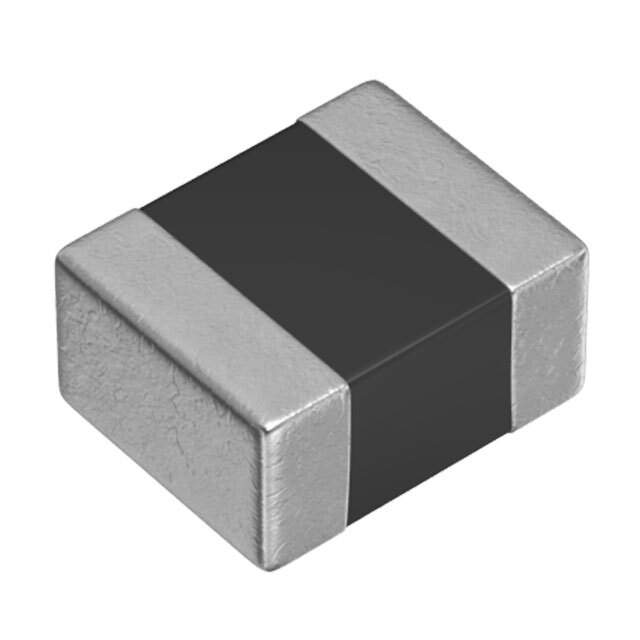

MLP2520W3R3MT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP2520W3R3MT0S1

Part No MLP2520W3R3MT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.2A 208 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Tape and Reel
Type Multilayer
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating (Amps) 1.2A
Shielding Shielded
DC Resistance (DCR) 208mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Parts Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 754962-MLP2520W3R3MT0S1
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MLP2520W3R3MT0S1 CAD Model

Description

This electronic component is an inductor manufactured by TDK Corporation.

  • Win Source Part Number: 754962-MLP2520W3R3MT0S1
  • Packaging: tape and reel
  • Type: multilayer
  • Mounting Style: SMD
  • Shielding: shielded
  • Inductance: 3.3μH
  • Tolerance: +/- 20%
  • Material - Core: ferrite
  • Category: inductors, coils, chokes
  • DC Resistance (DCR): 208mOhm Max
  • Supplier Device Package: 1008 (2520 Metric)
  • Temperature Range: -40 degrees Celsius to 125 degrees Celsius
  • Manufacturer Package: 1008 (2520 Metric)
  • Height Seated (Maximum): 0.039 inches (1.00mm)
  • Supply and Demand Status: balance
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
  • Parts Dimension: 0.098 inches L x 0.079 inches W (2.50mm x 2.00mm)
  • Current Rating (Amps): 1.2A
  • Inductance Frequency - Test: 2MHz
