Same model may have multiple batches, images only for reference.

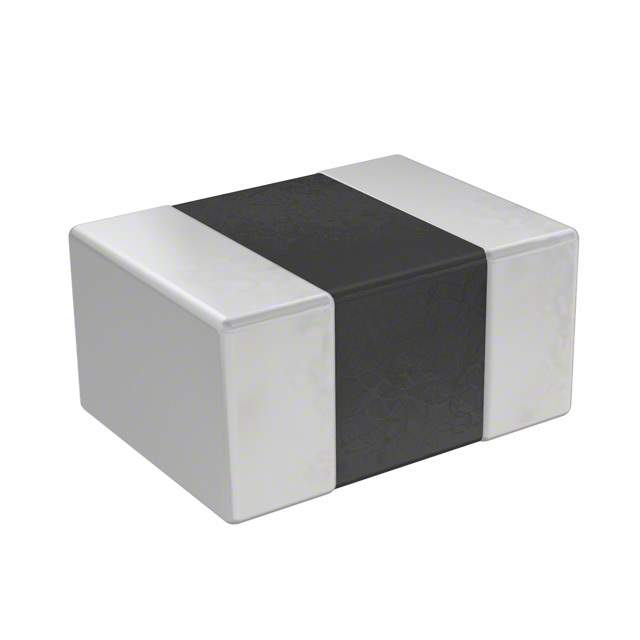

MLP1005M1R0DT0S1 Real Image
Same model may have multiple batches, images only for reference.

MLP1005M1R0DT0S1

Part No MLP1005M1R0DT0S1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 500MA 689 MOHM SMD / Inductors for Power Circuits Multilayer Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Multilayer
Material - Core Ferrite
Inductance 1μH
Tolerance ±20%
Current Rating (Amps) 500mA
Shielding Shielded
DC Resistance (DCR) 689mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10MHz
Mounting Style SMD
Manufacturer Package 0402
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Maximum) 0.030" (0.75mm)
Manufacturer Pack Quantity 8,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803204-MLP1005M1R0DT0S1
Ultra Librarian 3D Model Ultra Librarian MLP1005M1R0DT0S1 CAD Model

Description

The TDK Corporation MLP1005M1R0DT0S1 is a multilayer type device that comes in a shielded SMD package.

  • Inductance: 1μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance (DCR): 689mOhm
  • Operating Temperature: -40°C ~ 125°C
  • Height: 0.030" (0.75mm)
  • Manufacturer Pack Quantity: 8,000
  • Current Rating: 500mA
