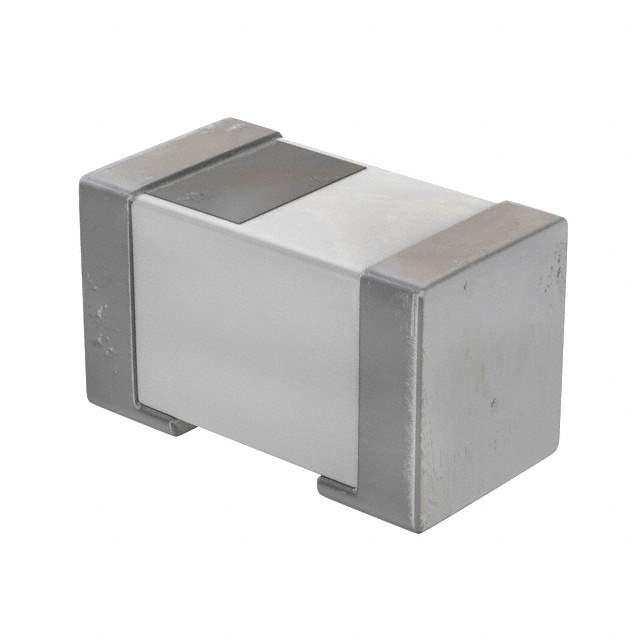

MHQ1005P22NGTD25 Real Image
Same model may have multiple batches, images only for reference.

MHQ1005P22NGTD25

Part No MHQ1005P22NGTD25
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22NH 230MA 1.1 OHM SMD / 22 nH Unshielded Multilayer Inductor 230 mA 1.1Ohm Max 0402 (1006 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Multilayer
Material - Core Ceramic, Non-Magnetic
Inductance 22 nH
Tolerance ±2%
Current Rating (Amps) 230 mA
Shielding Unshielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 20 @ 250MHz
Frequency - Self Resonant 2.1GHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Surface Mount
Case / Package 0402 (1006 Metric)
Supplier Device Package 1006 (0402)
Size / Dimension 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max) 0.024" (0.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number ,445-181307-2,445-181307-1,445-MHQ1005P22NGTD25TR,445-MHQ1005P22NGTD25CT,445-MHQ1005P22NGTD25DKR,445-181307-2-ND,445-181307-1-ND,MHQ1005P22NGTD25-ND
Standard Package 10,000
Win Source Part Number 1327701-MHQ1005P22NGTD25
Ultra Librarian 3D Model Ultra Librarian MHQ1005P22NGTD25 CAD Model

Description

The TDK Corporation fixed inductor is a multilayer type with an inductance of 22 nH and a tolerance of ±2%.

  • Shielding: Shielded
  • Size/Dimension: 0.039" L x 0.024" W (1.00mm x 0.60mm)
  • Packaging: Reel - TR
  • Standard Package: 10,000
  • DC Resistance (DCR): 1.1Ohm Max
  • Q @ Freq: 20 @ 250MHz
  • Frequency - Self-Resonant: 2.1GHz
  • Supplier Device Package: 1006 (0402)
  • Temperature Range - Operating: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 230 mA
  • HTSUS: 8504.50.8000
