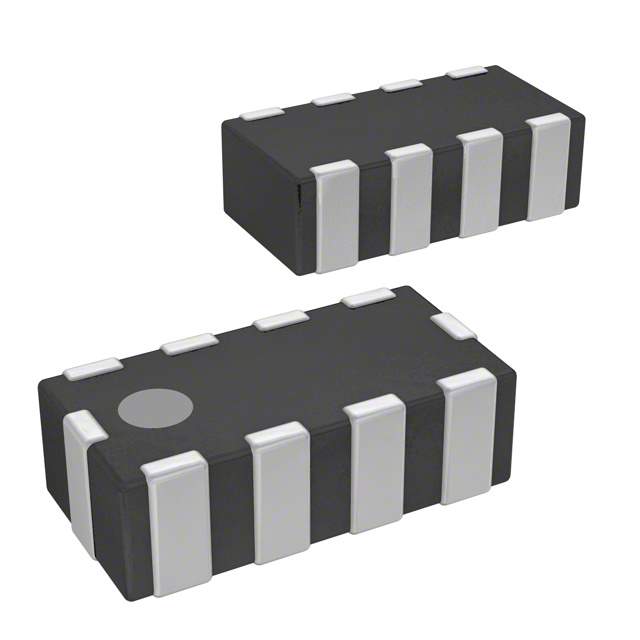

MEA2010LC220T002 Real Image
Same model may have multiple batches, images only for reference.

MEA2010LC220T002

Part No MEA2010LC220T002
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 22PF 210MHZ SMD
Datasheet
MEA2010LC220T002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 210MHz (Cutoff)
Attenuation Value 20dB @ 800MHz to 3GHz
Current 100mA
Values C = 22pF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height 0.024" (0.60mm)
Win Source Part Number 023176-MEA2010LC220T002
Ultra Librarian 3D Model Ultra Librarian MEA2010LC220T002 CAD Model

Description

The TDK Corporation MEA2010LC220T002 is a low pass filter with 4 channels.

  • Channels: 4
  • Voltage Rating: 6.3V
  • Current Rating: 100mA
  • Mounting: SMD (SMT) technology
  • Height: 0.024" (0.60mm)
  • Attenuation Value: 20dB @ 800MHz to 3GHz
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 210MHz (Cutoff)
  • Values: C = 22pF
  • ESD Protection: No
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.079" L x 0.039" W (2.00mm x 1.00mm)
