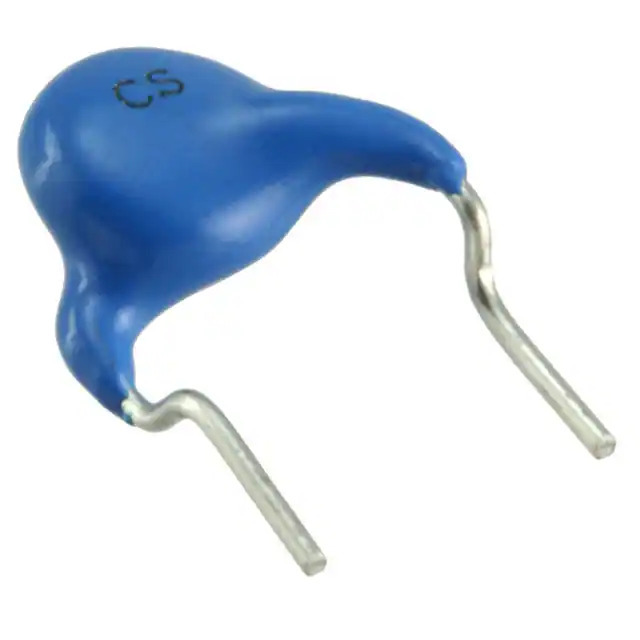

CS45-E2GA222M-NKA TDK Corporation
Same model may have multiple batches, images only for reference.

CS45-E2GA222M-NKA

Part No CS45-E2GA222M-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 2200PF 440VAC RADIAL / 2200 pF ±20% 440VAC Ceramic Capacitor E Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS45
Package Bulk
Product Status Active
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360595-CS45-E2GA222M-NKA
Ultra Librarian 3D Model Ultra Librarian CS45-E2GA222M-NKA CAD Model

Description

The 1360595-CS45-E2GA222M-NKA is a ceramic capacitor from TDK Corporation.

  • Series: CS45
  • Capacitance: 2200 pF
  • Tolerance: ±20%
  • Voltage Rating: 440VAC
  • Temperature Range: -25°C to 125°C
  • Safety Applications: X1 and Y2
  • Package: Radial, Disc
  • Mounting Type: Through Hole
  • Size Dimensions: 0.315" Dia (8.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • ECCN: EAR99
