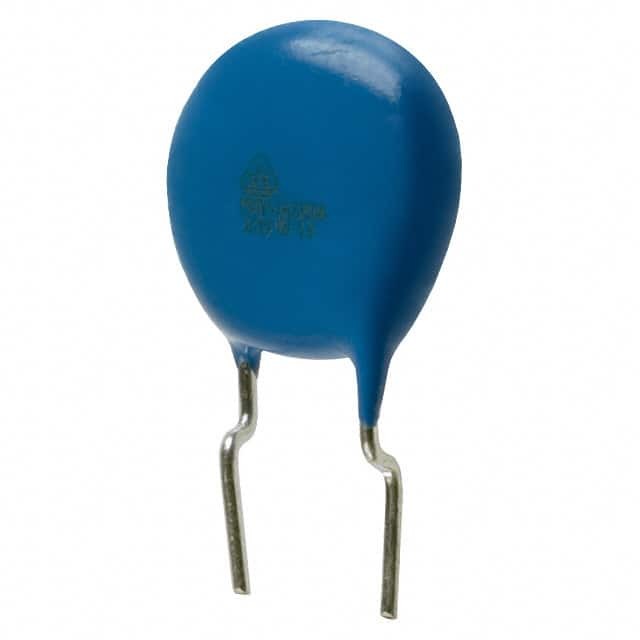

Same model may have multiple batches, images only for reference.
CS12-F2GA472MYNS
Same model may have multiple batches, images only for reference.

CS12-F2GA472MYNS

Part No CS12-F2GA472MYNS
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 250VAC RADIAL / 4700 pF ±20% 250VAC Ceramic Capacitor F Radial, Disc
Datasheet
CS12-F2GA472MYNS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CS
Package Bulk
Product Status Obsolete
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 250VAC
Temperature Coefficient F
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings X1, Y2
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 916037-CS12-F2GA472MYNS
Ultra Librarian 3D Model Ultra Librarian CS12-F2GA472MYNS CAD Model

Description

The CS12-F2GA472MYNS is an obsolete ceramic capacitor from TDK Corporation. It is part of the CS series and has a capacitance of 4700 pF with a tolerance of ±20%.

  • Status: Obsolete
  • Series: CS
  • Capacitance: 4700 pF
  • Tolerance: ±20%
  • Voltage Rating: 250VAC
  • Temperature Coefficient: F
  • Application: Safety
  • Packaging: Bulk
  • Diameter: 0.472" (12.00mm)
  • Height (Seated): 0.354" (9.00mm)
  • Lead Style: Formed Leads
  • Lead Spacing: 0.295" (7.50mm)
  • Mounting Type: Through Hole
  • Package: Radial, Disc
  • Operating Temperature: -25°C to 105°C
  • Standard Package: 1,000 pieces
