Same model may have multiple batches, images only for reference.

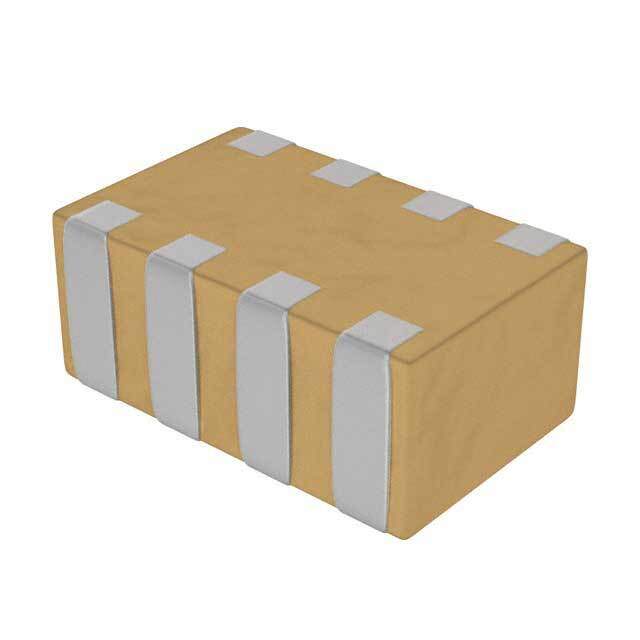

CKCA43C0G1H220K Real Image
Same model may have multiple batches, images only for reference.

CKCA43C0G1H220K

Part No CKCA43C0G1H220K
Manufacturer TDK Corporation
Catalog Capacitor Networks, Arrays
Description Cap Ceramic Array 22pF 50V C0G 10% 1206 Pad SMD 4 Capacitor 125°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 22 pF
Mounting SMD (SMT)
Case / Package 1206
Composition Ceramic
Depth 1.6 mm
Dielectric C0G
Height 1 mm
Lead Free Yes
Length 3.2 mm
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Capacitors 4
Number of Elements 4
Number of Pins 8
Number of Terminals 8
Packaging Cut Tape
RoHS Compliant
Terminal Pitch 800 µm
Termination SMD/SMT
Tolerance 10 %
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Width 1.6 mm
Win Source Part Number 983968-CKCA43C0G1H220K
Categories Capacitor Networks, Arrays
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CKCA43C0G1H220K CAD Model

Description

The TDK Corporation CKCA43C0G1H220K Capacitor Network Array is a surface mount device with 22 pF capacitance and 10% tolerance.

  • Capacitance: 22 pF
  • Tolerance: 10%
  • Voltage Rating: 50 V DC
  • Number of Elements: 4
  • Number of Pins: 8
  • Package Size: 1206 (3.2 x 1.6 x 1 mm)
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Dielectric Material: Ceramic, C0G
