Same model may have multiple batches, images only for reference.

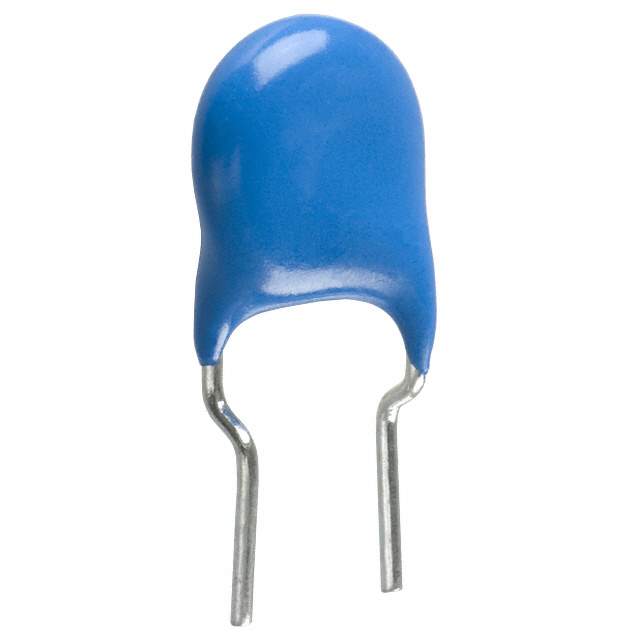

CK45-B3DD101KYNNA Real Image
Same model may have multiple batches, images only for reference.

CK45-B3DD101KYNNA

Part No CK45-B3DD101KYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 2KV RADIAL / 100 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Capacitance 100 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Other Names CK45B3DD101KYNNA,CK45-B3DD101KYNNA02
Standard Package 1,000
Win Source Part Number 1018708-CK45-B3DD101KYNNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3DD101KYNNA CAD Model

Description

The CK45-B3DD101KYNNA02 is a ceramic capacitor from TDK Corporation.

  • Capacitance: 100 pF
  • Voltage Rating: 2000V (2kV)
  • Tolerance: ±10%
  • Temperature Coefficient: B
  • Application: General Purpose
  • Package: Radial, Disc
  • Mounting: Through Hole
  • Height: 0.374" (9.50mm)
  • Thickness: 0.217" Dia (5.50mm)
