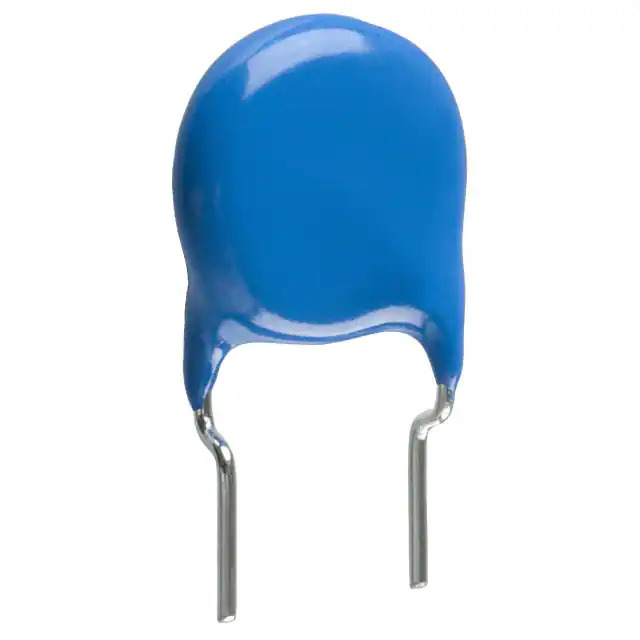

Same model may have multiple batches, images only for reference.
CK45-B3AD103KYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3AD103KYGNA

Part No CK45-B3AD103KYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 1KV RADIAL / 10000 pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc
Datasheet
CK45-B3AD103KYGNA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Bulk
Product Status Obsolete
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.610" (15.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1360022-CK45-B3AD103KYGNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3AD103KYGNA CAD Model

Description

The CK45-B3AD103KYGNA is a high voltage ceramic capacitor from TDK Corporation's CK45 series.

  • Package: Bulk
  • Capacitance: 10000 pF
  • Voltage Rating: 1000V
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±10%
  • Leads: Formed
  • Lead Spacing: 0.295" (7.50mm)
  • Size: 0.453" Dia (11.50mm)
  • Seated Height: 0.610" (15.50mm)
  • Status: Obsolete
  • Application: General-Purpose
