Same model may have multiple batches, images only for reference.

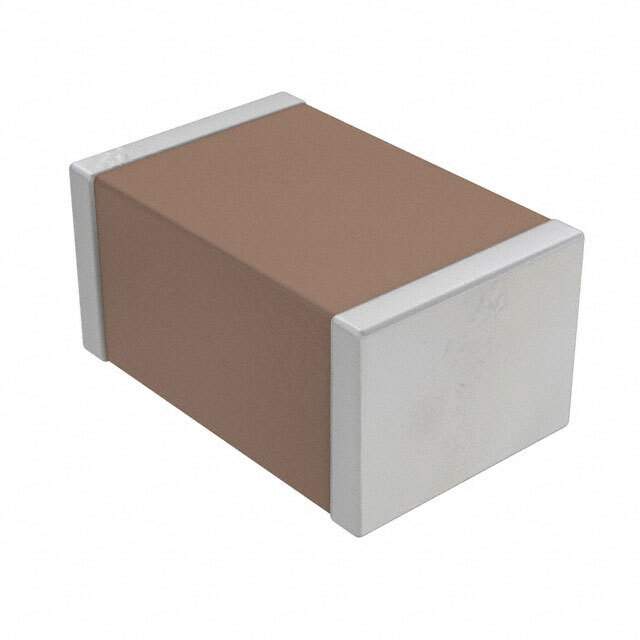

CGA4J3X7R1H684KT0Y0N Real Image
Same model may have multiple batches, images only for reference.

CGA4J3X7R1H684KT0Y0N

Part No CGA4J3X7R1H684KT0Y0N
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 680 nF
Mounting SMD (SMT)
Case / Package 0805
Height 1.45 mm
Material Ceramic
Maximum Operating Temperature 125 °C
Min Operating Temperature -55 °C
Voltage Rating 50 V
Win Source Part Number 974076-CGA4J3X7R1H684KT0Y0N
Categories Ceramic Capacitors
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CGA4J3X7R1H684KT0Y0N CAD Model

Description

This TDK Corporation ceramic capacitor is a high-quality component that is perfect for a variety of electronic applications.

  • Capacitance: 680 nF
  • Voltage Rating: 50V
  • Package/Case: 0805
  • Dimensions: 1.45mm x 2.00mm
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -55 °C
  • Mounting Type: Surface Mountable
  • RoHS Compliant: Yes
