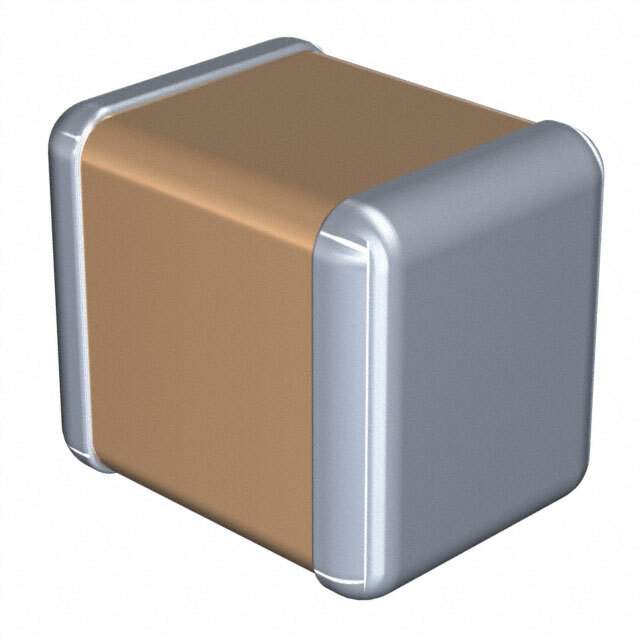

The C3225CH1H104JT000N is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This capacitor has a capacitance of 0.1µF (100nF), a voltage rating of 50V, and uses a CH dielectric material. The case size is 3225, which corresponds to dimensions of 3.2mm x 2.5mm (1210 in imperial units). This capacitor is suitable for applications requiring high Q factor, low loss, and stable capacitance characteristics, commonly found in RF and high-frequency circuits.

Applications:

• RF circuits
• High-frequency circuits
• Filter circuits
• Oscillator circuits
• Tuning circuits

Features:

• Capacitance: 0.1µF (100nF)
• Voltage Rating: 50V
• Dielectric Material: CH
• Case Size: 3225 (1210)
• High Q factor
• Low ESR (Equivalent Series Resistance)
• Stable capacitance

Benefits:

• Excellent performance in high-frequency applications
• Minimal signal loss due to low ESR
• Stable and predictable capacitance over temperature
• Improved circuit efficiency
• Reliable operation

Additional Details:

The CH dielectric is known for its exceptionally stable capacitance and low losses, making it ideal for RF and high-frequency applications. These capacitors have a high Q factor, which indicates minimal energy dissipation within the capacitor. The 3225 case size is slightly larger than the 3216 size, offering a balance between size and performance characteristics. The C3225CH1H104JT000N is often used in wireless communication devices, instrumentation, and other high-frequency equipment. The terminations are typically nickel barrier with tin plating to ensure good solderability. This capacitor is designed to be reflow soldered onto circuit boards.

This capacitor is an excellent choice for demanding RF and high-frequency applications where performance and stability are critical. The CH dielectric and optimized design ensure minimal signal loss and consistent performance.
