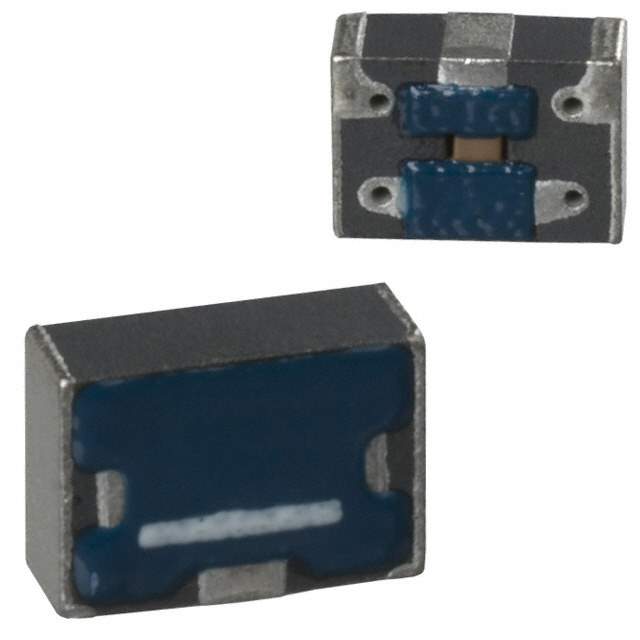

ACH4518-152-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACH4518-152-TD01

Part No ACH4518-152-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-152-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ACH
Packaging Reel package
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 50MHz ~ 130MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Operating Temperature Range -40°C ~ 125°C
Applications General
Voltage Rating DC 50V
Mounting SMD
Package 1812 (4532 Metric), 3 PC Pad
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 766907-ACH4518-152-TD01
Popularity Medium
Supply and Demand Status Limited
Family Name ACH
Introduction Date August 22, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian ACH4518-152-TD01 CAD Model

Description

The ACH4518-152-TD01 is a low pass filter manufactured by TDK Corporation.

  • Family: ACH
  • Filter Order: 3rd
  • Attenuation: 25dB @ 50MHz ~ 130MHz
  • Popularity: Medium
  • Supply and Demand: Limited
  • Mounting Type: Surface Mount
  • Package: 1812 (4532 Metric), 3 PC Pad
