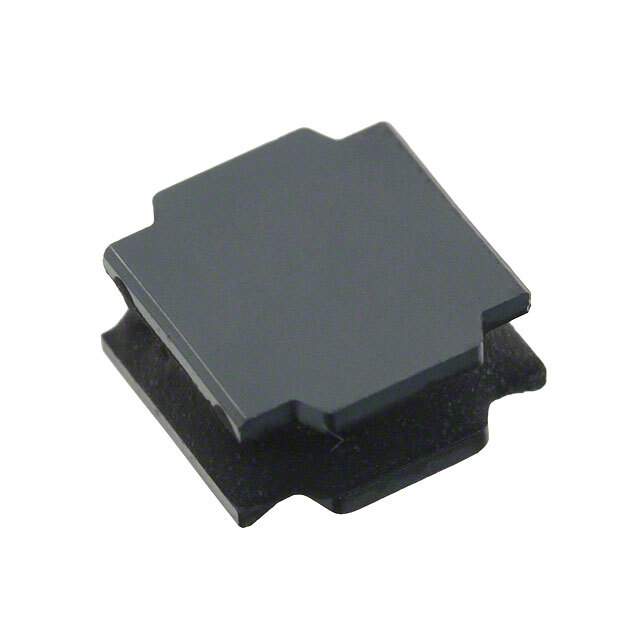

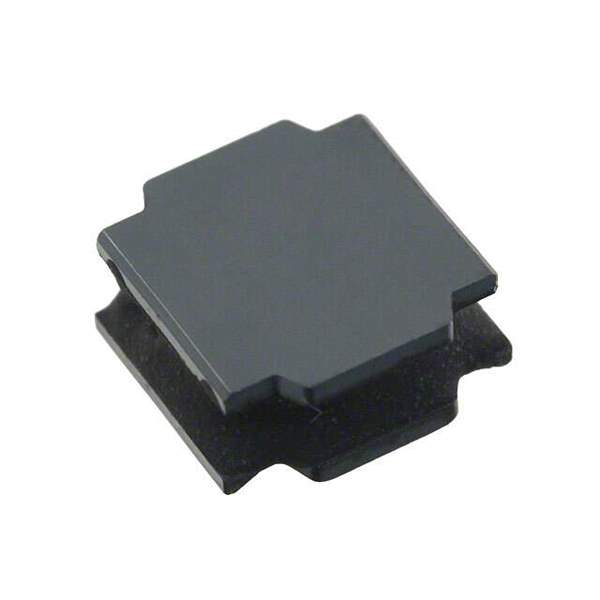

NRS6012T220MMGJ

Name: NRS6012T220MMGJ
Brand: Taiyo Yuden
SKU: 649442
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NRS6012T220MMGJ
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	SMD POWER INDUCTORS(NR SERIES/NR SERIES H TYPE/S TYPE/V TYPE)
Datasheet	NRS6012T220MMGJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Series	NRS
Packaging	Reel - TR
Type	Wirewound
Material - Core	Ferrite
Inductance	22μH
Tolerance	±20%
Current Rating	650mA
Current - Saturation	760mA
Shielding	Shielded
DC Resistance (DCR)	558 mOhm Max
Frequency - Self Resonant	12MHz
Operating Temperature Range	-25°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Size	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum)	0.047" (1.20mm)
Win Source Part Number	1232130-NRS6012T220MMGJ
Manufacturer Homepage	www.t-yuden.com/
Popularity	Medium
Supply and Demand Status	Limited
Family Name	NR
Introduction Date	October 25, 2011
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2026
Quantity per package	1k pcs
Ultra Librarian 3D Model	Ultra Librarian NRS6012T220MMGJ CAD Model

Alternative Products

Description

The NRS6012T220MMGJ is a shielded wirewound inductor manufactured by Taiyo Yuden.

Inductance: 22μH
Current Rating: 650mA
Operating Temperature Range: -25°C to 125°C
Package: Nonstandard
Mounting: SMD
Tolerance: ±20%
Current Saturation: 760mA
DC Resistance: 558 mOhm Max
Height: 0.047" (1.20mm)
Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
Supply and Demand Status: Limited
Estimated EOL Date: 2026
