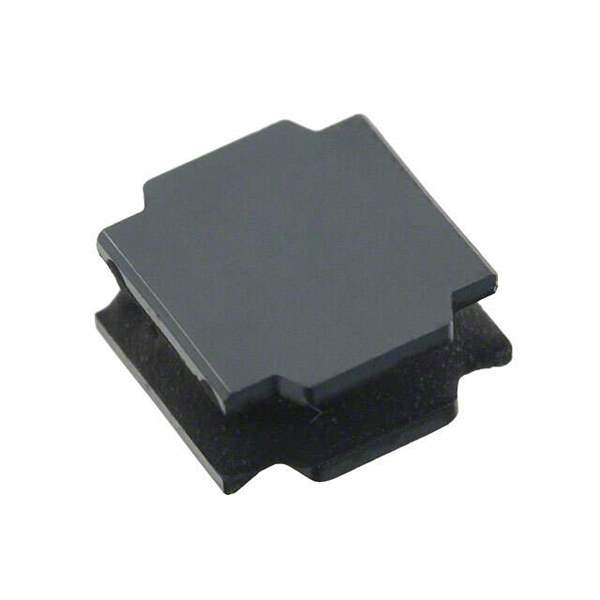

NRS6012T150MMGJ Real Image
Same model may have multiple batches, images only for reference.

NRS6012T150MMGJ

Part No NRS6012T150MMGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description SMD POWER INDUCTORS(NR SERIES/NR SERIES H TYPE/S TYPE/V TYPE)
Datasheet
NRS6012T150MMGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Series NRS
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 800mA
Current - Saturation 800mA
Shielding Shielded
DC Resistance (DCR) 354 mOhm Max
Frequency - Self Resonant 18MHz
Operating Temperature Range -25°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 1232129-NRS6012T150MMGJ
Manufacturer Homepage www.t-yuden.com/
Popularity Medium
Supply and Demand Status Limited
Family Name NR
Introduction Date October 25, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NRS6012T150MMGJ CAD Model

Description

The NRS6012T150MMGJ is an electronic component manufactured by Taiyo Yuden.

  • Series: NRS series
  • Type: Wirewound
  • Packaging: Shielded
  • Operating Temperature Range: -25°C ~ 125°C
  • Inductance: 15μH
  • Current Rating: 800mA
  • Mounting Style: SMD
  • Tolerance: ±20%
  • DC Resistance (DCR): 354 mOhm Max
  • Height Seated (Maximum): 0.047" (1.20mm)
  • Supply and Demand Status: Limited
  • Quantity per Package: 1k pcs
