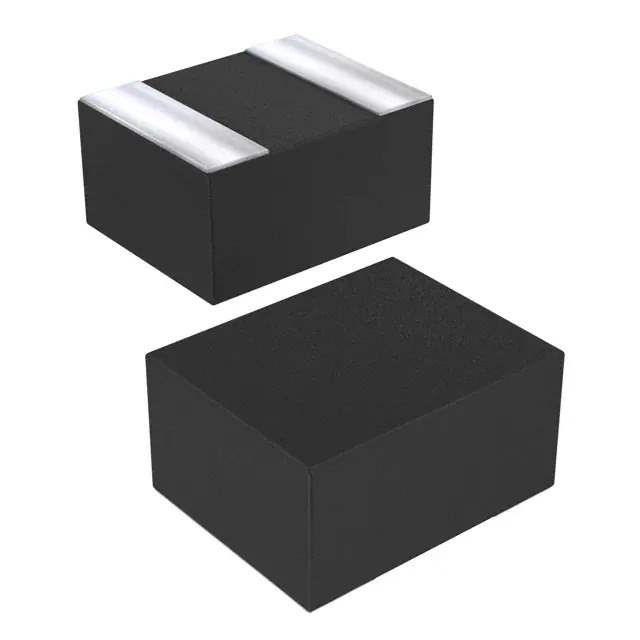

MEKK2520T1R0M Real Image
Same model may have multiple batches, images only for reference.

MEKK2520T1R0M

Part No MEKK2520T1R0M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1UH 3.3A 53 MOHM SMD
Datasheet
MEKK2520T1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, ME
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 4.3A
Shielding Shielded
DC Resistance (DCR) 53mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 739942-MEKK2520T1R0M
Ultra Librarian 3D Model Ultra Librarian MEKK2520T1R0M CAD Model

Description

The MEKK2520T1R0M is a fixed inductor with a drum core and wirewound construction.

  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.039" (1.00mm)
  • Inductance: 1μH
  • Tolerance: ±20%
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Design: Shielded
  • Maximum DC Resistance: 53mOhm
  • Current Rating: 3.3A
