Same model may have multiple batches, images only for reference.

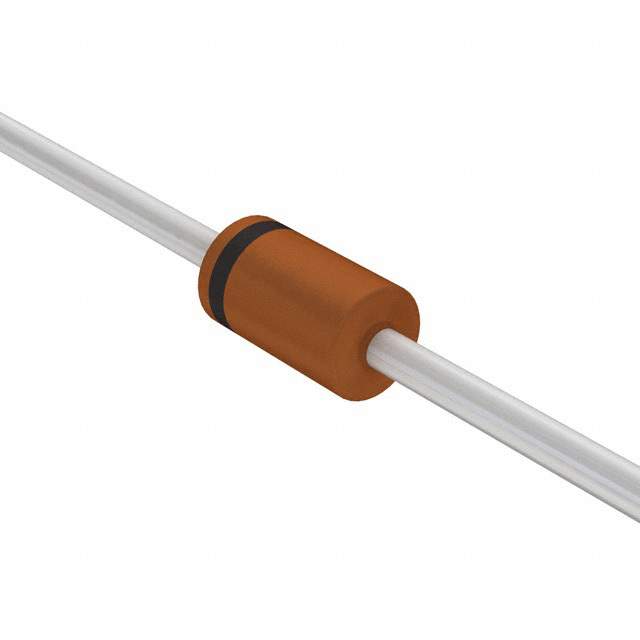

MTZJ30SA R0G Real Image
Same model may have multiple batches, images only for reference.

MTZJ30SA R0G

Part No MTZJ30SA R0G
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description DIODE, ZENER, 27.69V, 500MW, %, / Zener Diode Single 27.69V 3% 55Ohm 500mW 2-Pin DO-34 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TSC America Inc.
Voltage - Zener (Nom) (Vz) 27.69V
Tolerance ±2%
Power - Max 500mW
Impedance (Maximum) (Zzt) 55 Ohm
Current - Reverse Leakage @ Vr 200nA @ 23V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting Style Through Hole
Package DO-204AG, DO-34, Axial
Manufacturer Package DO-34
Win Source Part Number 790267-MTZJ30SA R0G
Popularity Medium
Supply and Demand Status Limited
Family Name MTZJ30SA
Introduction Date January 29, 2015
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MTZJ30SA R0G CAD Model

Description

The TSC America Inc. MTZJ30SA R0G is a through-hole-mounted zener diode that is perfect for a wide range of electronic applications.

  • Maximum Power: 500mW
  • Voltage: 27.69V
  • Tolerance: ±2%
  • Maximum Impedance: 55 Ohm
  • Reverse Leakage Current: 200nA @ 23V
  • ECCN: EAR99
  • Package: DO-204AG, DO-34, Axial
  • Maximum Clamping Voltage: 234V
  • Family: MTZJ30SA
