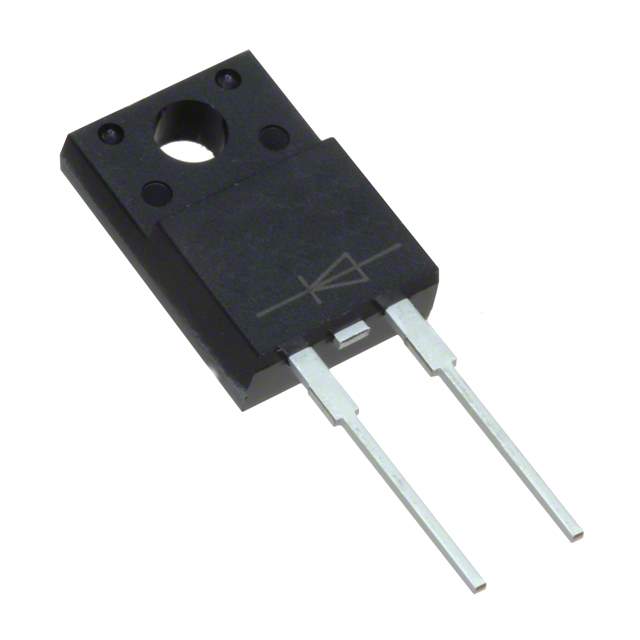

The HERAF803G is a fast recovery epitaxial diode manufactured by Taiwan Semiconductor. It is designed for use in applications requiring rapid switching and efficient rectification. This diode is commonly used in switching power supplies, inverters, and other high-frequency circuits.

Applications:

• Switching power supplies
• Inverters
• Free-wheeling diodes
• Snubber circuits
• High-frequency rectification

Features:

• Fast recovery time: Allows for efficient high-frequency switching.
• High surge current capability: Provides robustness against transient current surges.
• Low forward voltage drop: Reduces power dissipation and improves efficiency.
• High reliability: Ensures stable performance under various operating conditions.
• Glass passivated junction: Enhances the diode's performance and reliability.
• RoHS compliant: Meets environmental standards for hazardous substances.

Benefits:

• Improved efficiency in switching circuits.
• Enhanced system reliability.
• Reduced power dissipation.
• Compliance with environmental regulations.
• Stable performance in demanding applications.

Additional Details:

The HERAF803G typically has a reverse voltage rating of 200V and a forward current rating of 8.0A. Its fast recovery time is generally in the range of tens of nanoseconds. The operating temperature range is typically -65°C to +175°C. The package is usually TO-220AC. It is commonly used in power adapters, electronic ballasts, and various switching power supplies where fast recovery is critical for efficient operation.
